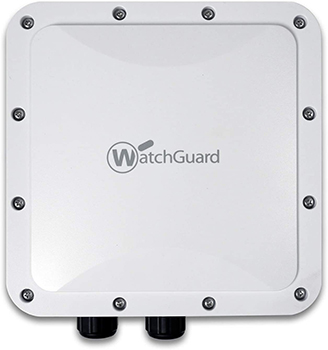

WatchGuard AP327X
IP67-rated enclosure, dual radio, 2x2:2 MU-MIMO, 802.11ac Wave 2

WatchGuard AP327X

WatchGuard Wireless
WatchGuard AP327X and Basic Wi-Fi
Basic Wi-Fi Package includes AP with subscription to manage that AP with a Gateway Wireless Controller and Standard Support
WatchGuard AP327X and 1-yr Basic Wi-Fi
#WGA37701
List Price: $725.00
Our Price: $565.50
WatchGuard AP327X and 3-yr Basic Wi-Fi
#WGA37703
List Price: $820.00
Our Price: $639.60
WatchGuard AP327X and Secure Wi-Fi
Secure Wi-Fi Package includes AP with subscription to manage that AP in Wi-Fi Cloud, Standard Support, and WIPS
WatchGuard AP327X and 1-yr Secure Wi-Fi
#WGA37731
List Price: $750.00
Our Price: $585.00
WatchGuard AP327X and 3-yr Secure Wi-Fi
#WGA37733
List Price: $870.00
Our Price: $678.60
WatchGuard AP327X and Total Wi-Fi
Total Wi-Fi Package includes AP with subscription to manage that AP in Wi-Fi Cloud, Standard Support, WIPS, Engage Captive Portals, Analyze Location Analytics, and Go Mobile Web App
WatchGuard AP327X and 1-yr Total Wi-Fi
#WGA37721
List Price: $815.00
Our Price: $635.70
WatchGuard AP327X and 3-yr Total Wi-Fi
#WGA37723
List Price: $1,000.00
Our Price: $780.00

More pricing below, click here!

WatchGuard AP327X Overview:

Today more than ever, people expect Wi-Fi access no matter where they are – outside, camping, even in walk-in freezers. This IP67-rated access point (AP) comes equipped with four N-Type connectors to support a variety of external antennas. Whether your project requires 360-degree coverage, narrow-beam directional, or longer distance point-to-point, the AP327X protects your Wi-Fi network in the harshest environments.

The AP327X extends your Trusted Wireless Environment to ideal locations such as school campuses, warehouses, manufacturing facilities, shopping malls, public hotspots, municipal Wi-Fi, and other outdoor or harsh weather deployments. Unlock the full potential of the AP327X when managed by the Wi-Fi Cloud for Wireless Intrusion Prevention System (WIPS) security, intelligent network visibility and troubleshooting of wired and wireless issues, location-based analytics, guest engagement and marketing tools.

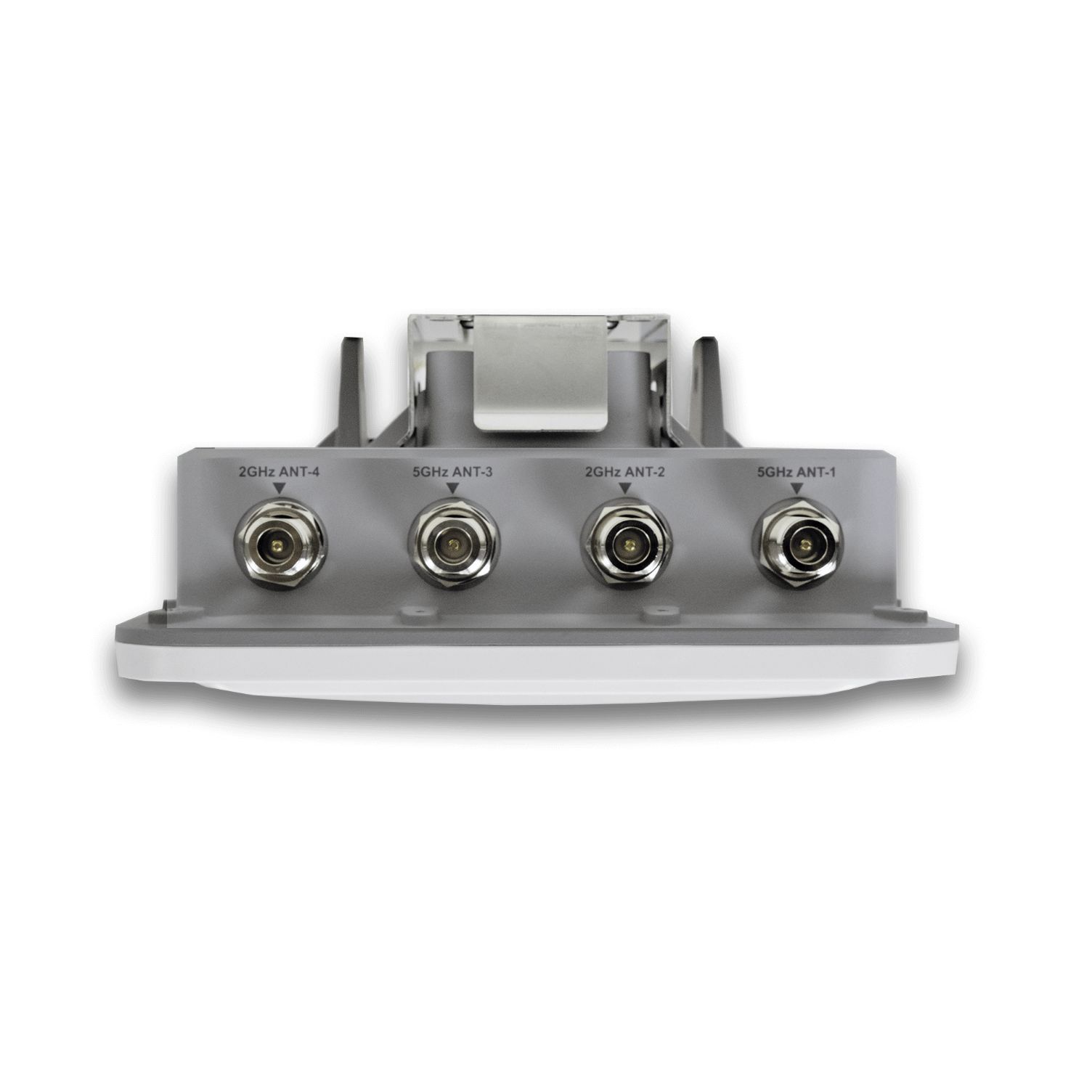

The AP327X offers four N-Type connectors for flexible antenna pattern coverage capabilities to secure Cloud-managed outdoor Wi-Fi! Its IP67-rated enclosure is made for the harshest environments and extends your Trusted Wireless Environment to the outdoors. This access point with dual concurrent 5 GHz and 2.4 GHz band radios and data rates up to 867 GHz and 400 Mbps respectively delivers broad, fast, and reliable Wi-Fi coverage – making the AP327X ideal for school campuses, warehouses, manufacturing yards, malls, public hotspots, and other municipal Wi-Fi deployments.


Ruggedized Enclosure


Ruggedized Enclosure

The AP327X is IP67-compliant and tested to withstand the harshest weather conditions, so it can be mounted with direct exposure to the elements – no overhang or shelter required. This AP is capable of operating in temperatures -40°C to 65°C (-40°F to 149°F).


Dual-Band Omni Antennas

Omni-directional (360 degree) coverage is ideal for installations where the AP327X is centrally located and client devices require connectivity in all directions such as school recreation areas, outdoor pools, manufacturing buildings, and public hotspots. Designed to be used with the AP327X outdoor access point and suitable for any access point that supports N-Type connectors. Sold separately in sets of 2.

Dual-Band Omni Antennas


Cloud-Based Network

Cloud-Based Network Baselining and Troubleshooting

"Why is the Wi-Fi not working?" If this comment sounds all too familiar, you’re not alone. Whenever a user experiences a problem, they will often blame Wi-Fi. IT admins need access to better answers. The Wi-Fi Cloud provides real-time insight into the users’ experience and tracks why clients may fail to connect to the network. Wi-Fi Cloud baselines network traffic and automatically highlights anomalies by triggering alerts to network admins for resolving issues before users report them.


Join the Trusted Wireless Environment Movement

With the importance of Wi-Fi to all of our lives, every person in this world deserves to connect to a Wi-Fi they can trust. The only way to accomplish this is to establish a security standard for Wi-Fi.

Trusted Wireless

24x7 Expert Wi-Fi

24x7 Expert Wi-Fi Support Included

WatchGuard understands just how important support is when you are trying to manage and secure your Wi-Fi network with limited resources. Sometimes you require additional knowledge and assistance in a fast-changing technology world where mobility is becoming ever more critical and complex, and downtime can spell disaster. Automatically included with the purchase of any access point and management package, is 24x7 support with 4 hours target response time for high severity issues, advanced RMA replacement, and software updates. With over 20 Certified Wireless Network Professionals (CWNP), WatchGuard support team gives you the backup you need from the moment you activate your WatchGuard AP.

Features & Benefits:

  • Four N-Type external connectors offer a variety of external antenna choices for flexible pattern coverage capabilities (Antennas sold separately)
  • The IP67 sealed enclosure provides protection in harsh weather conditions and can be mounted with direct exposure to the elements – no overhang or shelter required
  • AP327X takes less than two minutes to activate and configure after connecting to the Wi-Fi Cloud
  • Support for up to eight individual SSIDs per radio allows for maximum flexibility in network design
  • Smart steering automatically pushes clients with low speeds to a closer access point*
  • Application firewall for over 1,900 applications*, network connection, and performance anomaly detection
  • AP327X continues to scan for wireless threats and enforces security policy even if the connection with the Wi-Fi Cloud is interrupted*

Uniquely Effective Approach To Security

The AP327X supports the only Wireless Intrusion Prevention System (WIPS) in the industry with high accuracy in classifying access points and client devices, properly enabling automatic prevention of Wi-Fi threats and keeping a network protected from wireless man-in-the middle attacks, evil twins, honeypots, and more.

Flexible Management Options

You can manage the AP327X with either a Firebox®, via the Gateway Wireless Controller and receive a lightweight feature set, or with WatchGuard’s Wi-Fi Cloud.

With the Wi-Fi Cloud you get an expanded set of features including patented security, marketing tools, network visibility and troubleshooting, location-based analytics for optimal business insights. IT pros can also enjoy an entirely controller-less Wi-Fi management experience including set up, configuration, monitoring, troubleshooting, and improved corporate and guest Wi-Fi access, without worrying about the limitations of legacy controller infrastructure. Wi-Fi Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, and customer to maintain consistent policies.

Intelligent Network Visibility And Troubleshooting

Wi-Fi Cloud helps IT professionals confidently provide answers to the most challenging Wi-Fi network questions, bringing the most complete set of Wi-Fi visibility, troubleshooting, and network health features ever introduced to the market. Pinpoint meaningful network problems and application issues by seeing when an anomaly occurs above baseline thresholds and remotely troubleshoot.*

*Must have Wi-Fi Cloud enabled with Secure Wi-Fi or Total Wi-Fi license.

Specifications:


AP327X Specifications
Physical Details
Property Specification
Physical Dimensions 213.9 mm x 213.9 mm x 67.5 mm
Weight 3.95 lbs, 1.78 kg
Operating Temperature -40°C to 65°C (-40°F to 149°F)
Operating Humidity -5% to 95% non-condensing
Non-operating Temperature -40°C to 70°C (-40°F to158°F)
Non-operating Humidity 5% to 95%, non-condensing
Storage Temperature 0°C – 45°C (32°F to 113°F)
Max Power Consumption 19 W (max) / 11 W (min) / 16 W (avg)
Chipset Qualcomm QCA IPQ4029 + QCA8075
Processor and RAM Qualcomm IPQ4029-1-583MSP with 512MB RAM and 128MB Flash
Port Description Connector Type Speed/Protocol
LAN1/PoE Gigabit Ethernet port that enables the device to connect to the wired LAN and communicate with the WatchGuard Wi-Fi Cloud or Server. This port is also used to power the device using the 802.3at Power over Ethernet Plus (PoE+) standard. IP67 rated weather-proof RJ-45 10/100/1000 Mbps Gigabit Ethernet 802.3at PoE+
LAN2 Gigabit Ethernet port that can be used for wired extension for an SSID IP67 rated weather-proof RJ-45 10/100/1000 Mbps Gigabit Ethernet
Reset Reset to factory default settings Push button Hold down a power cycle to reset the device
Wi-Fi Specifications – Frequency, Modulation, and Data Rates
IEEE 802.11b/g/n
Frequency Band Scanning Transmission
All regions USA & Canada
(FCC/IC)
Europe
(ETSI)
2412 ~ 2472 MHz 2412 ~ 2462 MHz 2412 ~ 2472 MHz
Modulation Type DSSS, OFDM
Data Rates Up to 400 Mbps (MCS 0-23) with automatic rate adaptation
IEEE 802.11a/n/ac
Frequency Band Scanning Transmission
All regions USA & Canada
(FCC/IC)
Europe
(ETSI)
5.15 ~ 5.85 MHz 5.15 ~ 5.85 MHz 5.15 ~ 5.72 MHz
Dynamic Frequency Selection DFS and DFS2
Modulation Type OFDM
Data Rates Up to 867 Mbps (MCS 0-9) with automatic rate adaptation
Maximum Power Values
Maximum Transmit Power 24 dBm
Receive Sensitivity -93 dBm

Access Point Mode:

  • WPA/WPA2 (802.11i) with TKIP or AES-CCMP encryption and PSK or 802.1x authentication
  • Integrated WIPS background wireless scanning and Rogue AP prevention

WIPS Sensor Mode:

  • Dedicated dual-band WIPS scanning for complete 24/7 protection from wireless threats
Regulatory Specifications
RF and Electromagnetic
Certification FCC
Safety UL

Wi-fi Solution:

WatchGuard has you covered, indoors and out

No matter what your wireless battleground is – remote offices, guest Wi-Fi, corporate access, public hotspots, outdoor environments – WatchGuard has a range of access points to fit your business needs. WatchGuard’s Wi-Fi packages allow you to quickly and easily find the right set of features your business needs today…and tomorrow.

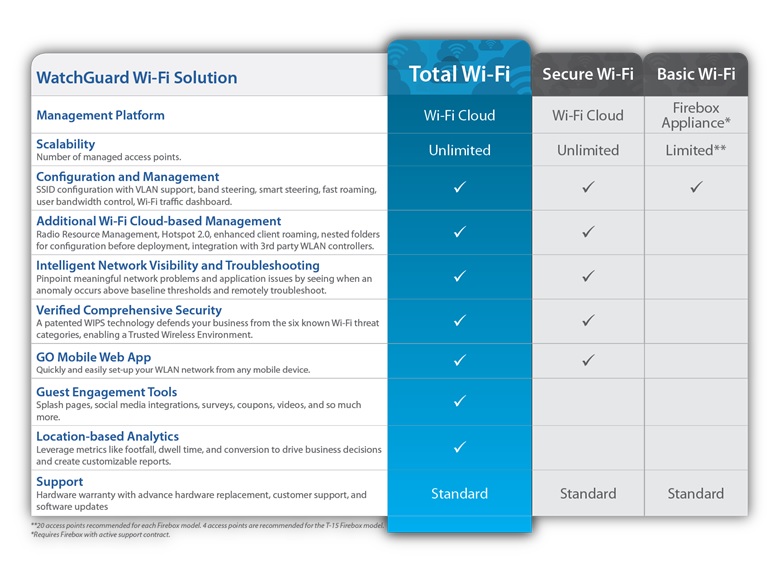

WatchGuard Wi-Fi Solution Total Wi-Fi Secure Wi-Fi Basic Wi-Fi
Management Platform Wi-Fi Cloud Wi-Fi Cloud Firebox Appliance*
Scalability
Number of managed access points
Unlimited Unlimited Limited**
Configuration and Management
SSID configuration with VLAN support, band steering, smart steering, fast roaming, user bandwidth control, Wi-Fi traffic dashboard.

Additional Wi-Fi Cloud-Based Management
Radio Resource Management, Hotspot 2.0, enhanced client roaming, nested folders for configuration before deployment, integration with 3rd party WLAN controllers.



Intelligent Network Visibility and Troubleshooting
Pinpoint meaningful network problems and application issues by seeing when an anomaly occurs above baseline thresholds and remotely troubleshoot.


Verified Comprehensive Security
A patented WIPS technology defends your business from the six known Wi-Fi threat categories, enabling a Trusted Wireless Environment.

GO Mobile Web App
Quickly and easily set-up your WLAN network from any mobile device.

Guest Engagement Tools
Splash pages, social media integrations, surveys, coupons, videos, and so much more.

Location-Based Analytics
Leverage metrics like footfall, dwell time, and conversion to drive business decisions and create customizable reports.

Support
Hardware warranty with advance hardware replacement, customer support, and software updates
Standard Standard Standard

*Requires Firebox with active support contract.
**20 access points recommended for each Firebox model. For the T-15 Firebox model 4 access points are recommended.

No need to rip and replace, just add WIPS

Each WatchGuard access point has the flexibility to operate as both an access point and a dedicated WIPS security sensor. This means that when deployed as dedicated WIPS sensors, the devices work with your existing access points (Cisco, Aruba, Ruckus, Ubiquiti, etc) and add enterprise-grade wireless security protection to your network. In this case, instead of delivering secure Wi-Fi traffic to users, we deliver unprecedented WIPS security protection that is 100% dedicated to scanning the air and protecting your business from wireless threats.

Comparision Guide:

Designed from the ground up for businesses of all types and sizes, access points from WatchGuard deliver the best combination of security, performance, and manageability on the market. When managed by the WatchGuard Wi-Fi Cloud, these access points deliver fast, reliable wireless access while providing our customers with industry-leading wireless security, powerful guest engagement, and business-driven analytic tools.

Choose a cloud-ready access point that meets your business needs – whether indoors or outdoors – without sacrificing security.

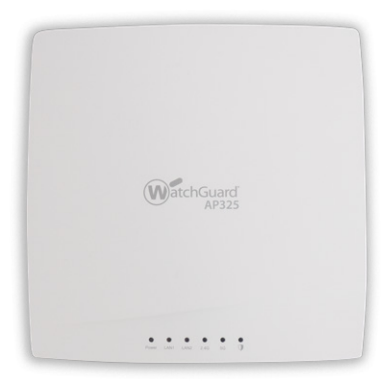

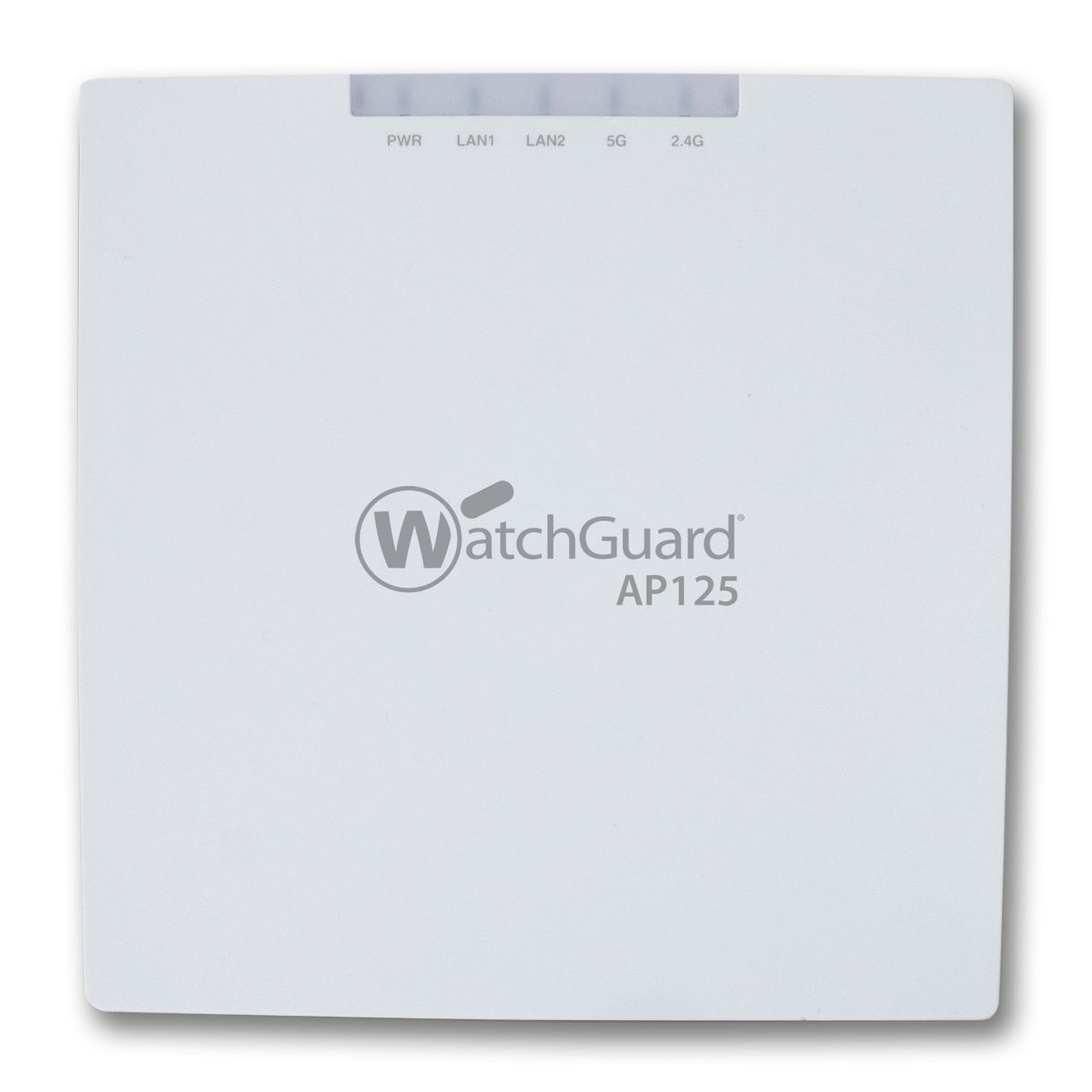

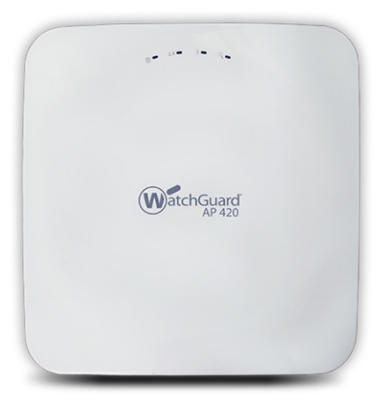

  AP125 AP325 AP327X AP420
Recommended
Use Cases
Lower-density high performance ideal for small schools, distributed remote offices, and small meeting rooms Medium-density high performance including K-12 schools, SMBs, restaurants Medium-density, IP67-rated rugged outdoor including school campuses, RV parks, manufacturing yards, warehouses High-density, high performance including large schools, meeting rooms, shopping malls
Radios & Streams 2x2:2 MU-MIMO
Wave 2
2x2:2 MU-MIMO
Wave 2
2x2:2 MU-MIMO
Wave 2
4x4:4 MU-MIMO
Wave 2
3rd WIPS radio
Deployment Indoor Indoor Outdoor Indoor
Number of Antennas 4 internal 6 internal 4 N-Type External Connectors 10 internal
Maximum TX Power* 20 dBm 20 dBm 24 dBm 27 dBm
Maximum Data Rate
(5/2.4 GHz)
867 Mbps / 300 Mbps 867 Mbps / 300 Mbps 867 Mbps / 400 Mbps 1.7 Gbps / 800 Mbps
Maximum SSIDs per Radio 8 8 8 8
Ports 2x GbE 2x GbE 2x GbE 2x GbE
Power over Ethernet (PoE) 802.3af (PoE) 802.3at (PoE+) 802.3at (PoE+) 802.3at (PoE+)
A/C Adapter
(Sold Separately)
Optional Optional N/A Optional
PoE+ Injector
(Sold Separately)
Optional Optional Optional Optional
Power Consumption Max: 13W
Min: 3W
Average: 11W
Max: 13W
Min: 11W
Average: 16W
Max: 19W
Min: 11W
Average: 16W
Max: 20W
Min: 16W
Average: 18W
Mounting Options
(Included)
T-Bar Ceiling T-Bar Ceiling Vertical wall or pole T-Bar Ceiling
Mounting Options
(Sold Separately)
Flat surface (wall, hard ceiling),silhouette T-grid rails Flat surface (wall, hard ceiling),silhouette T-grid rails N/A Flat surface (wall, hard ceiling),silhouette T-grid rails
Operating Temperature 32 to 113°F (0 to 45°C) 32 to 113°F (0 to 45°C) -40°F to 149°F (-40°C to 65°C) 32 to 104°F (0 to 40°C)
Operating
Relative Humidity
5%-95% Non-condensing 5%-95% Non-condensing 5%-95% Non-condensing 0-95% Non-condensing
Storage Temperature .4 to 149°F (-20 to 65°C) .4 to 149°F (-20 to 65°C) -40 to 158°F (-40 to 70°C) -13 to 167°F (-25 to 75°C)
Non-Operating
Relative Humidity
5%-95% Non-condensing 5%-95% Non-condensing 5%-95% Non-condensing 0-95% Non-condensing
Product dimensions 5.83” x 5.83” x 1.29”
(148 x 148 x 33 mm)
7.72” x 7.72” x 1.69”
(196 x 196 x 43 mm)
8.42” x 8.42” x 2.66”
(213.9 mm x 213.9 mm x 67.5 mm)
8.66” x 8.66” x 2.24”
(220 x 220 x 57 mm)
Shipping dimensions 7.4” x 6.9” x 2.2”
(188 x 175.3 x 55.9 mm)
9.5” x 10” x 3”
(241.3 x 254 x 76.2 mm)
9.5” x 10” x 3”
(241.3 x 254 x 76.2 mm)
12.5” x 11.5” x 3”
(317.5 x 292.1 x 76.2 mm)
Product Weight 0.52 lbs (237 g) 1.87 lbs (0.84 kg) 3.95 lbs (1.78 kg) 2.86 lbs (1.3 kg)
Shipping Weight 1 lbs (0.45 kg) 3 lbs (1.36 kg) 5.95 lbs (2.7 kg) 3.65 lbs (1.6 kg)
Certifications
Wireless FCC, IC, CE, MIC
Safety NRTL/C, CB, CE
Hazardous Substance Compliance WEEE, RoHS

*Country-specific restrictions apply

You can manage all of WatchGuard’s access points with either a Firebox via the Gateway Wireless Controller or with the Wi-Fi Cloud. And, with Wi-Fi Cloud you get an expanded set of features including strong WIPS security, social network enabled captive portals, marketing tools, and location-based analytics for optimal business insights.

Product View:

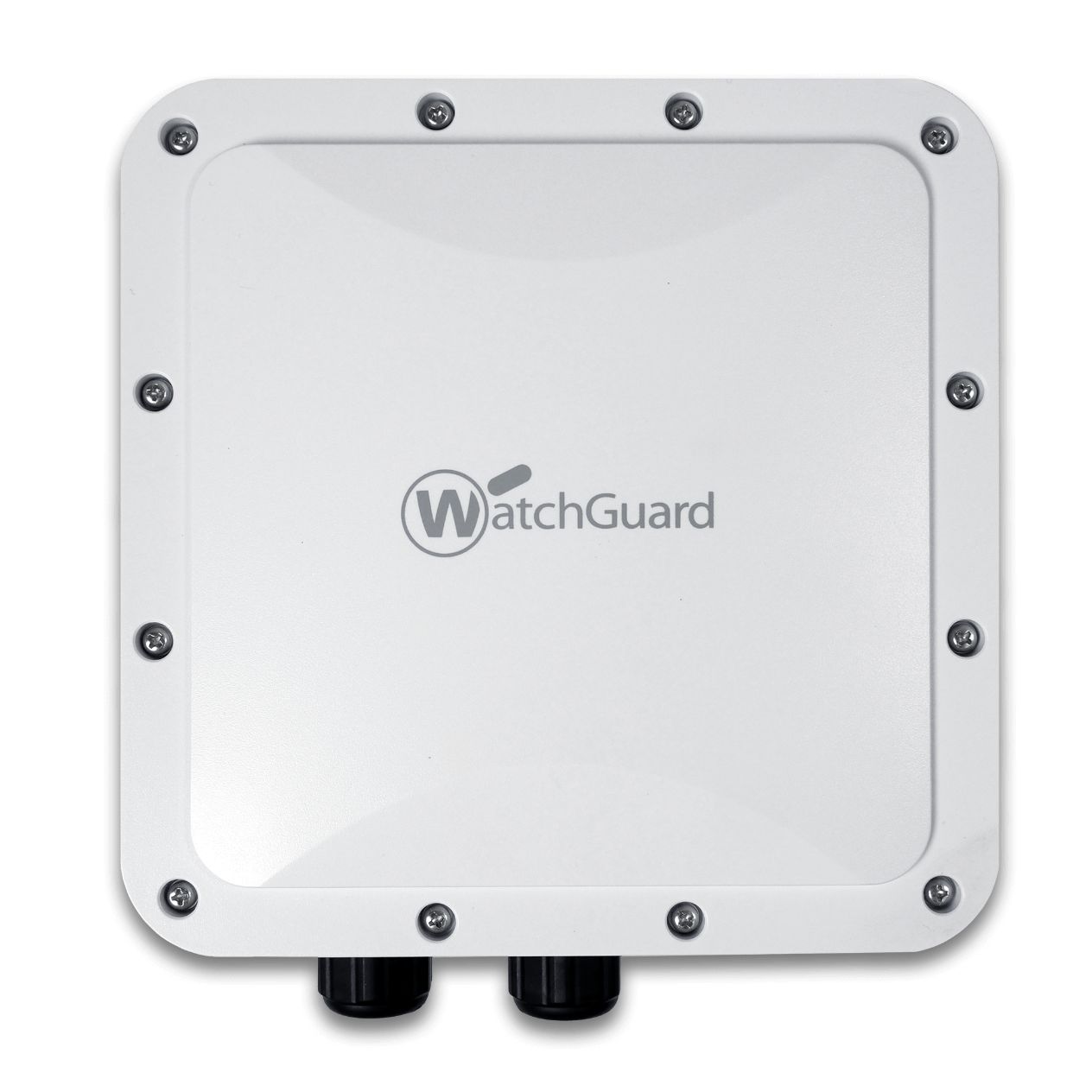

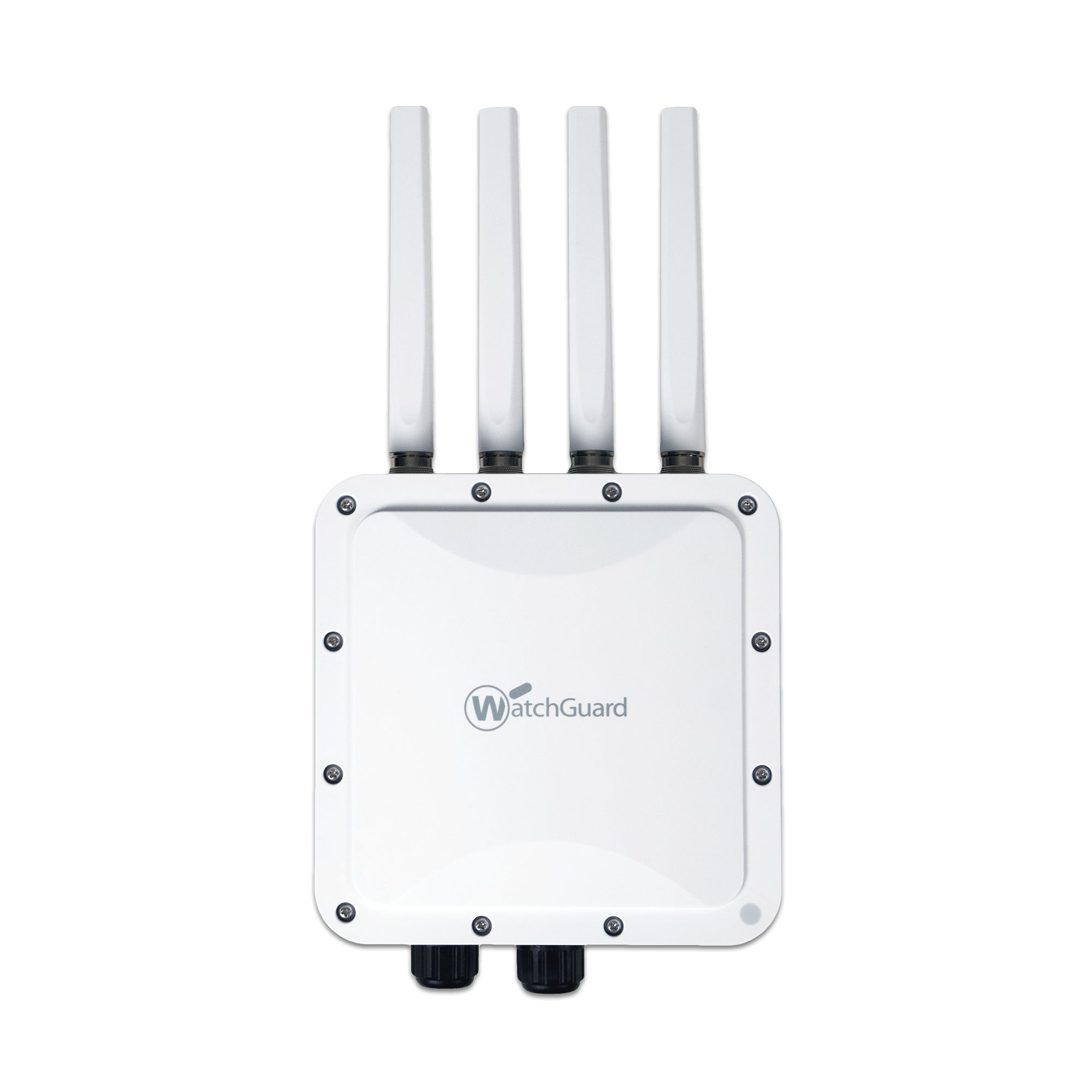

AP327X Front Views

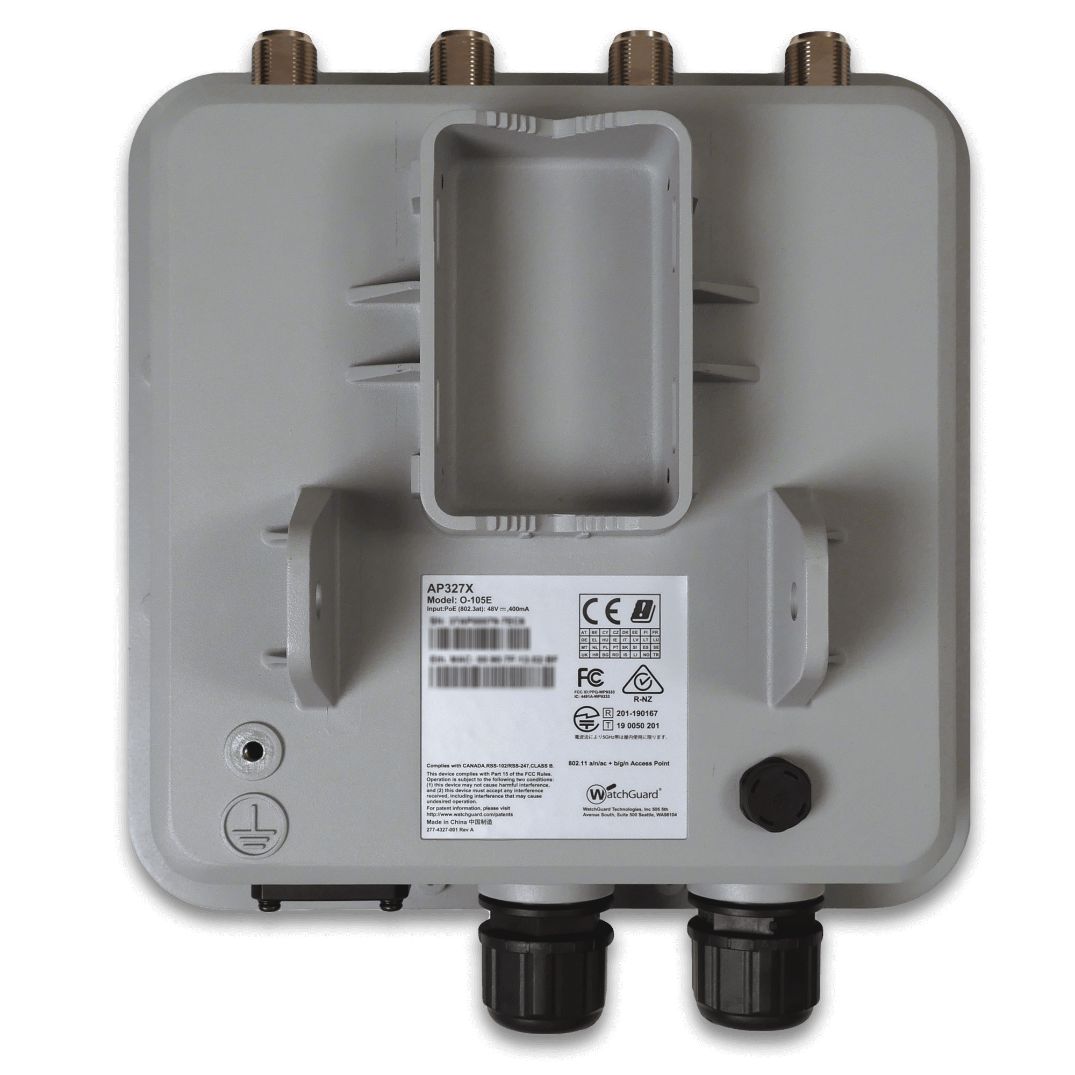

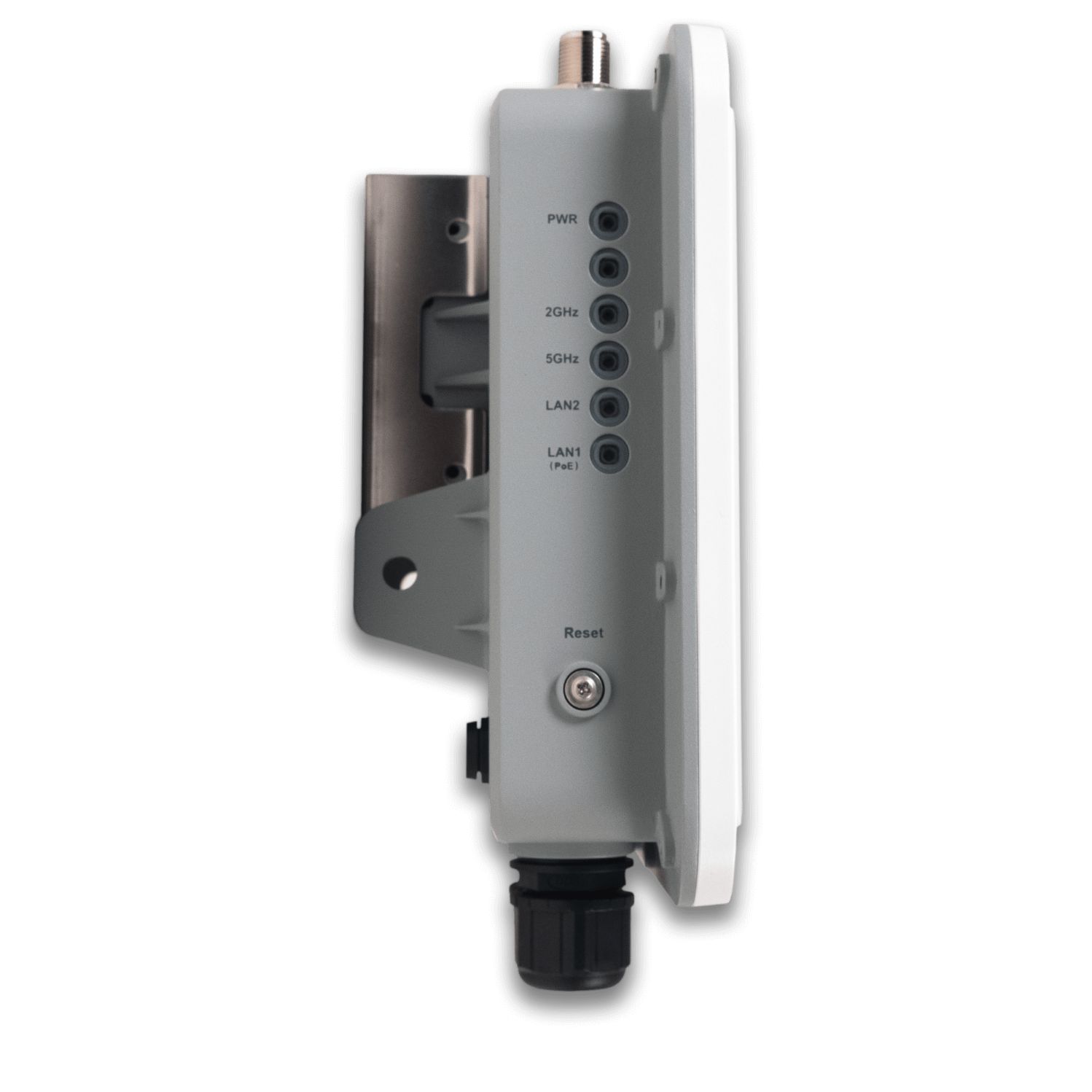

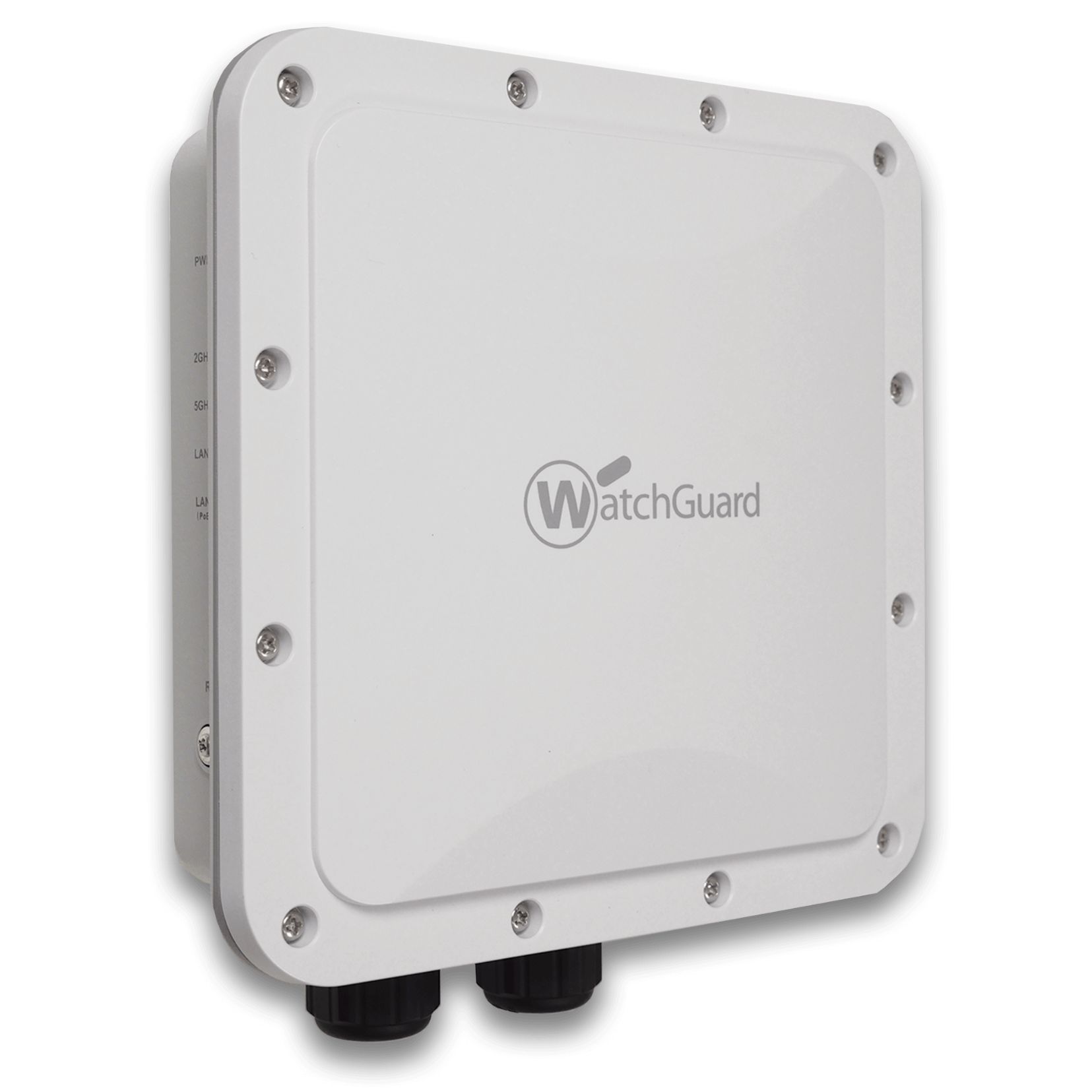

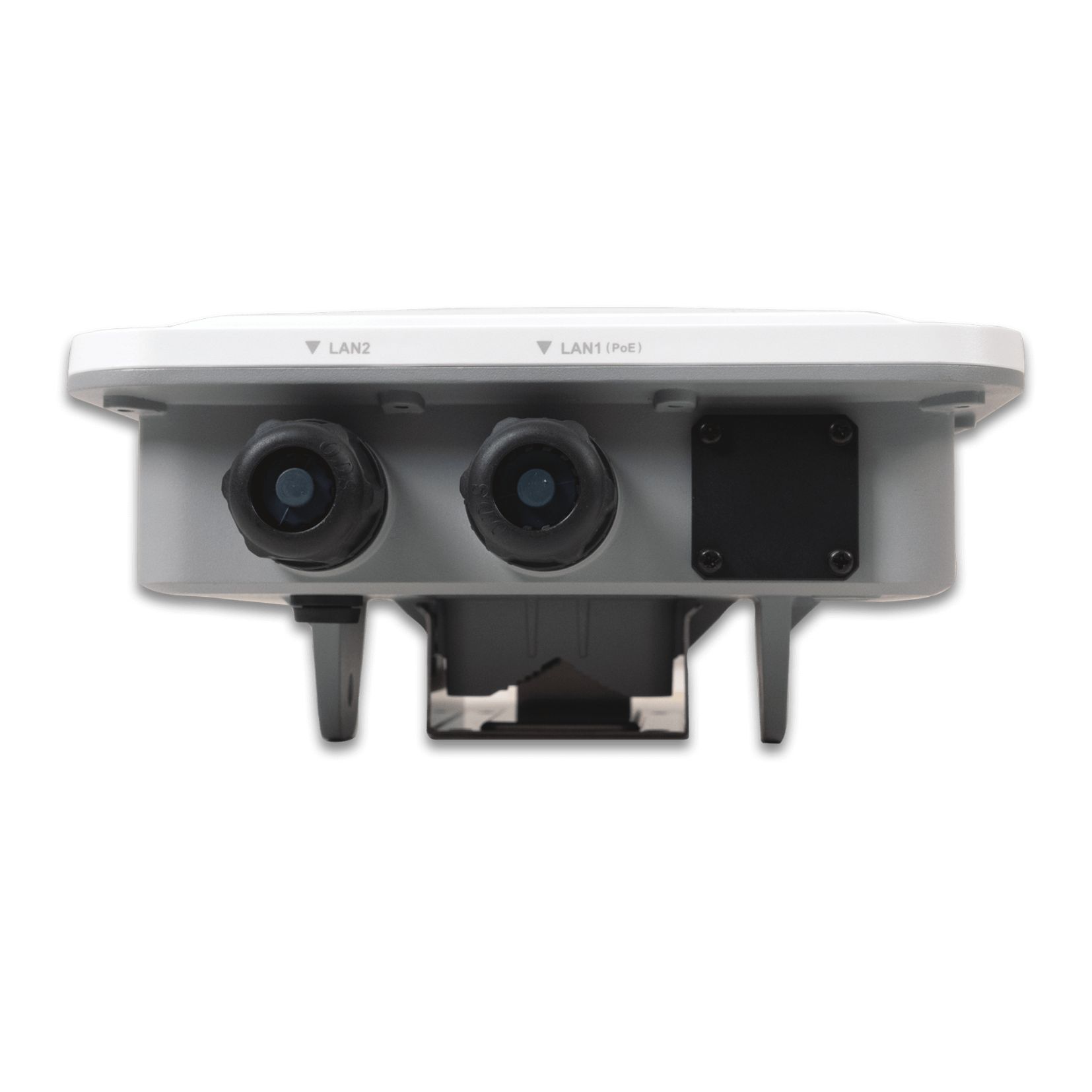

AP327X Side Views

Documentation:

Download the WatchGuard AP327X Outdoor Access Point Datasheet (PDF).

Pricing Notes:

WatchGuard Wireless
WatchGuard AP327X and Basic Wi-Fi
Basic Wi-Fi Package includes AP with subscription to manage that AP with a Gateway Wireless Controller and Standard Support
WatchGuard AP327X and 1-yr Basic Wi-Fi
#WGA37701
List Price: $725.00
Our Price: $565.50
WatchGuard AP327X and 3-yr Basic Wi-Fi
#WGA37703
List Price: $820.00
Our Price: $639.60
WatchGuard AP327X and Secure Wi-Fi
Secure Wi-Fi Package includes AP with subscription to manage that AP in Wi-Fi Cloud, Standard Support, and WIPS
WatchGuard AP327X and 1-yr Secure Wi-Fi
#WGA37731
List Price: $750.00
Our Price: $585.00
WatchGuard AP327X and 3-yr Secure Wi-Fi
#WGA37733
List Price: $870.00
Our Price: $678.60
WatchGuard AP327X and Total Wi-Fi
Total Wi-Fi Package includes AP with subscription to manage that AP in Wi-Fi Cloud, Standard Support, WIPS, Engage Captive Portals, Analyze Location Analytics, and Go Mobile Web App
WatchGuard AP327X and 1-yr Total Wi-Fi
#WGA37721
List Price: $815.00
Our Price: $635.70
WatchGuard AP327X and 3-yr Total Wi-Fi
#WGA37723
List Price: $1,000.00
Our Price: $780.00
Competitive Trade In to WatchGuard AP327X and Basic Wi-Fi
Competitive Trade In to WatchGuard AP327X and 3-yr Basic Wi-Fi
#WGA37443
List Price: $700.00
Our Price: $546.00
Competitive Trade In to WatchGuard AP327X and Secure Wi-Fi
Competitive Trade In to WatchGuard AP327X and 3-yr Secure Wi-Fi
#WGA37513
List Price: $745.00
Our Price: $581.10
Competitive Trade In to WatchGuard AP327X and Total Wi-Fi
Competitive Trade In to WatchGuard AP327X and 3-yr Total Wi-Fi
#WGA37453
List Price: $855.00
Our Price: $666.90
Trade Up to WatchGuard AP327X and Basic Wi-Fi
Trade Up to WatchGuard AP327X and 3-yr Basic Wi-Fi
#WGA37403
List Price: $700.00
Our Price: $546.00
Trade Up to WatchGuard AP327X and Secure Wi-Fi
Trade Up to WatchGuard AP327X and 3-yr Secure Wi-Fi
#WGA37493
List Price: $745.00
Our Price: $581.10
Trade Up to WatchGuard AP327X and Total Wi-Fi
Trade Up to WatchGuard AP327X and 3-yr Total Wi-Fi
#WGA37483
List Price: $855.00
Our Price: $666.90
Accessories

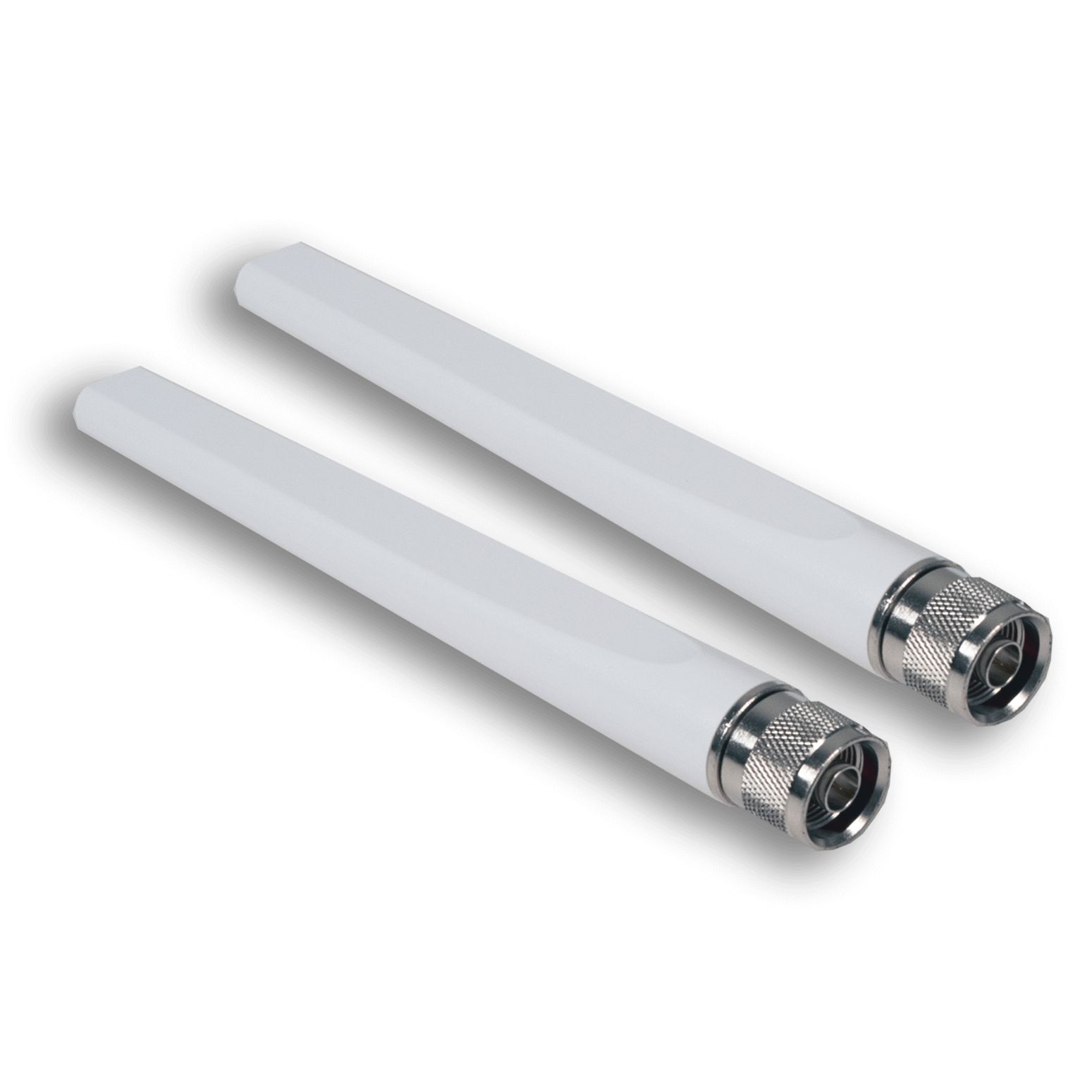

Dual-Band Omni Antennas (5/7 dBi)
#WG9004
Our Price: $50.00
