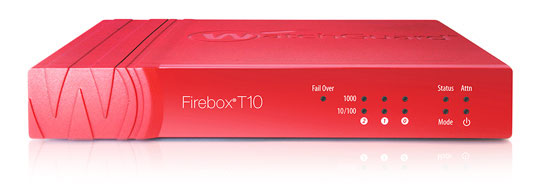

WatchGuard Firebox T10
Protect Where You Connect
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
WatchGuard Firebox T Series Overview:
Rethink the Perimeter:
Ideal for small office/branch office and small retail environments, the Firebox T10, T30 and T50 create a secure network perimeter in remote locations that do not have adequate security protection in place today. Comprehensive Unified Threat Management (UTM) safeguards intellectual property and protects personal data, credit card numbers, and other critical assets from exposure and theft.
The Benefits of UTM:
An all-in-one network security solution integrates complete protection. All security capabilities work together for a comprehensive approach to network protection with a single console for reporting.
Features:
Best-of-Breed Security:
- Application-layer content inspection recognizes and blocks threats that stateful packet firewalls cannot detect.
- Powerful subscription-based security services boost protection in critical attack areas for multiple layers of defense. By partnering with leading technology providers, WatchGuard is able to integrate best-of-breed security components into one Unified Threat Management platform for stronger security at big cost savings.
- APT Blocker uses a cloud-based sandbox with full system emulation to detect and block advanced malware and zero day attacks.
- Application Control keeps unproductive, inappropriate, and dangerous applications off-limits.
- Intrusion Prevention Service (IPS ) delivers in-line protection from malicious exploits, including buffer overflows, SQL injections, and cross-site scripting attacks.
- WebBlocker controls access to sites that host objectionable material or pose network security risks.
- Gateway AntiVirus (GAV) scans traffic on all major protocols to stop threats.
- spamBlocker delivers continuous protection from unwanted and dangerous email.
- Reputation Enabled Defense ensures faster, safer web surfing with cloud-based look-up.
- Data Loss Prevention (DLP) automatically inspects data in motion for corporate policy violations.
- Multiple VPN choices (IPSec, SSL, L2TP) for secure remote access include support for Android and Apple iOS devices.
Easy to Manage:
- Interactive, real-time monitoring & reporting, at no additional charge, give an unprecedented view into network security activity so you can take immediate preventive or corrective actions.
- WatchGuard Dimension™, a public and private cloud-ready visibility solution, instantly turns raw data into security intelligence.
- RapidDeploy technology enables quick, secure configuration at remote locations without technical staff on-site.
- Intuitive management console centrally manages all security functions.
- Drag-and-drop Branch Office VPN setup – three clicks and your remote office is connected.
Choose Built-in Wireless:
- Wireless models (those with -W at the end of their model number) include optional dual-band 802.11a/b/g/n/ac technology for much more responsive wireless network connection and expanded range. 2.4 GHz or less crowded 5 GHz band.
- Wireless guest services segment the Internet for customers/guests.
Compare Models:
| WatchGuard Firebox Model Comparison | |||
|---|---|---|---|
| Firebox Model | Firebox T10/10-W | Firebox T30/30-W | Firebox 50/50-W |
| Performance | |||
| Firewall Throughput | 400 Mbps | 620 Mbps | 1.2 Gbps |
| VPN Throughput | 100 Mbps | 150 Mbps | 270 Mbps |
| AV Throughput | 120 Mbps | 180 Mbps | 235 Mbps |
| IPS Throughput | 160 Mbps | 240 Mbps | 410 Mbps |
| UTM Throughput | 90 Mbps | 135 Mbps | 165 Mbps |
| Concurrent Connections | 50,000 | 200,000 | 300,000 |
| New Connections per second | 2,300 | 3,400 | 4,600 |
| VLANs | 10 | 50 | 75 |
| Authenticated User Limit | 200 | 500 | 500 |
| Physical | |||
| Interfaces 10/100/1000 | 3 copper* | 5 copper | 7 copper |
| I/O Interfaces | 1 Serial/1 USB | 1 Serial/2 USB | 1 Serial/2 USB |
| Power over Ethernet (PoE) | n/a | 1 Port | 1 Port |
| VPN Tunnels | |||
| Branch Office VPN | 5 | 40 | 50 |
| Mobile VPN IPSec & SSL/L2TP | 5 | 25 | 50 |
| Security Features | |||
| Firewall | Stateful packet inspection, deep packet inspection, proxy firewall | ||
| Application Proxies | HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3 | ||
| Threat Protection | DoS attacks, fragmented packets, blended threats and more | ||
| VoIP | H.323, SIP, call setup and session security | ||
| Filtering Options | Browser Safe Search, YouTube for Schools | ||
| Security Subscriptions | Application Control, IPS, WebBlocker, GAV, Data Loss Prevention, spamBlocker, Reputation Enabled Defense, APT Blocker | ||
| VPN & Authentication | |||
| Encryption | DES, 3DES, AES 128-, 192-, 256-bit | ||
| IPSec | SHA-1, SHA-2, MD5, IKE pre-shared key, 3rd party cert | ||
| Single Sign-on | Supports Windows, Mac OS X, mobile operating systems | ||
| Authentication | RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database | ||
| Management | |||
| Logging & Notifications | WatchGuard, Syslog, SNMP v2/v3 | ||
| User Interfaces | Centralized console (WSM), Web UI, scriptable CLI | ||
| Reporting | WatchGuard Dimension includes 70 pre-defined reports, executive summary and visibility tools | ||
| Certifications | |||
| Security | Pending: ICSA Firewall, ICSA IPSec VPN | ||
| Safety | NRTL/C, CB | ||
| Network | IPv6 Ready Gold (routing) | ||
| Hazardous Substance Control | WEEE, RoHS, REACH | ||
| Networking | |||
| Routing** | Dynamic (BGP4, OSPF, RIP v1/v2), Policy-based VPN | ||
| High Availability | Active/passive available on T30 and T50 models | ||
| QoS | 8 priority queues, DiffServ, modified strict queuing | ||
| IP Address Assignment | Static, DHCP (server, client, relay), PPPoE, DynDNS | ||
| NAT | Static, dynamic, 1:1, IPSec traversal, policy-based / Virtual IP for server load balancing** | ||
| Link Aggregation** | 802.3ad dynamic, static, active/backup | ||
| Other Features | Static routing, port Independence, transparent/drop-in mode/Multi-WAN failover and load balancing**, server load balancing** | ||
| Physical & Power | |||
| Product Dimensions | 7.5” x 6.0” x 1.25” (19 x 15.2 x 3.2 cm) | 9.3” x 6.8” x 1.4” (23.7 x 17.3 x 3.6 cm) | |
| Shipping Dimensions | 12.5” x 7.25” x 2” (32 x 18.4 x 5 cm) | 10.5” x 8.5” x 4” (26.7 x 22 x 10.2 cm) | |
| Shipping Weight | 3.1 lbs (1.5 Kg) | 3.3 lbs (1.5 Kg) (North America) | |
| AC Power | 100-240 VAC Autosensing | ||
| Power Consumption | U.S. 15 Watts (51 BTU/hr) (max) | ||
| Power over Ethernet | 802.3at (PoE+) - 25W | ||
| Rack Mountable | No | ||
| Environment | |||
| Temperature |
|
||
| Relative Humidity |
|
||
| Altitude |
|
||
| MTBF |
|
||
Please note: Throughput rates are determined using multiple flows through multiple ports and will vary depending on environment and configuration.
* Firebox T10-D (DSL) is available in Europe & Australia. Supports ADSL2+VDSL2/ ADSL on WAN port with integrated modem.
**Not available on Firebox T10, T10-W, T10-D
Options & Upgrades:
Security Subscriptions
|
Reputation Enabled Defense delivers a powerful, cloud-based URL reputation service that protects web users from malicious web pages, while dramatically improving web processing overhead. |
WebBlocker content and URL filtering subscription helps eliminate legal liabilities resulting from inappropriate web surfing, while increasing employee productivity and protection from web-based attacks. |
spamBlocker is the best in the industry at distinguishing legitimate communication from spam outbreaks in real time, blocking nearly 100% of unwanted emails and the viral payloads they carry. |
Gateway AntiVirusis a fully integrated, signature-based security subscription that identifies and blocks known spyware, viruses, trojans, and blended threats in real time. |
|
| Support Service Support Service, a high-value support and maintenance program that you activate online when you register your product. Support Services deliver technical support, hardware warranty with advance hardware replacement, the latest software updates, and threat alerts. |

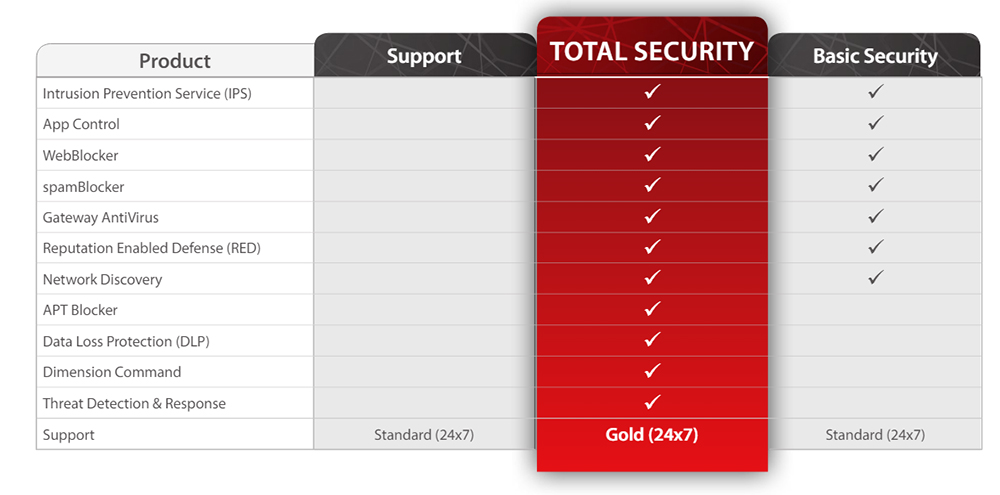

One Appliance, One Package, Total Security
Simplicity is our mission at WatchGuard and that mission extends beyond how the product is built to how it is packaged. While all of our services are offered à la carte, we have worked to develop two packages that simplify the decision-making process. The Total and Basic Security Suite packages are only available on our Firebox T and M Series appliances. Similar packages can be custom-created by our Partners for XTM and XTMv customers, however, we are always running promotions to encourage our customers to trade-up to the latest hardware to enjoy the fastest performance and strongest security.
- The Basic Security Suite includes all of the traditional network security services typical to a UTM appliance: IPS, GAV, URL filtering, application control, spam blocking and reputation lookup. It also includes our centralized management and network visibility capabilities, as well as, our standard 24x7 support.
- The Total Security Suite includes all services offered with the Basic Security Suite plus advanced malware protection, data loss protection, enhanced network visibility capabilities, and the ability to take action against threats right from Dimension, our network visibility platform. It also includes upgraded Gold level 24x7 support.

Documentation:
Download the WatchGuard Firebox T Series Datasheet (PDF).
