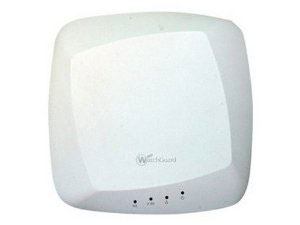

WatchGuard AP102 Indoor/Outdoor Access Point
Wireless Indoor/Outdoor Access Point
Sorry, this unit has been discontinued and is no longer available for purchase, replace by AP327X. If you currently own this Model, please click here to participate in the WatchGuard Trade-Up Program! End of Sale (EOS): 31 Dec 2016. End of Life (EOL) for the AP102 is 31 Dec 2019 - you will not be able receive support after this date even with a 1 Year contract.
Sorry, this product is no longer available. Please Contact Us for a replacement.
WatchGuard Access Point Overview:
The mass adoption of smart wireless devices like tablets, smartphones and notebooks is driving the BYOD (bring your own device) explosion, putting ever increasing demands on wireless networks. This pressure, coupled with the exponential growth of applications and cloud services available to end-users, means it is now more important than ever to have control of your entire network – both wired and wireless – with best-in-class security, integrated security policies, and increased visibility.
Extend best-in-class UTM security to the WLAN
Protecting against today’s sophisticated blended threats requires multiple security capabilities, and these threats don’t discriminate between a wired or wireless network path to their targets. WatchGuard’s wireless access points meet this challenge by extending best-in-class UTM security – including application control, intrusion prevention, URL and web content filtering, virus and spam blocking and more – from your WatchGuard firewall to the WLAN. With these appliances, businesses can harness the power of mobile devices and wireless networking – both indoors and outdoors – without putting network assets at risk.
Integrate wired and wireless security policies
WatchGuard’s integrated wireless controller technology combined with WatchGuard’s AP100, AP102, AP200, and AP300 wireless access points allows users to easily apply security policies to wired and WLAN resources simultaneously , which is critical to enforcing security standards across the entire network infrastructure. And updating integrated policies couldn’t be simpler – creating huge IT time and cost savings.
Unified device management
Unified device management tools offer a “single pane of glass” view into network security activities and allow users to configure and manage their WatchGuard wireless access points and WatchGuard firewall from one place – reducing both setup time and maintenance costs.
- Ease of management - With unified management tools, administrators can easily manage both their AP devices and firewall appliances from a single console
- Strong security - Features like MAC filtering, client reporting, Captive Portal technology, 802.1X authentication, and PCI compliant scan and reporting ensure a strong WLAN security stance.

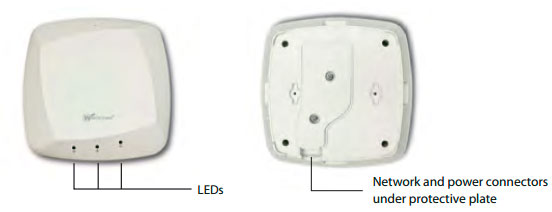

- Great coverage, low profile - Powerful radios and custom internal antennas provide broad, reliable WLAN coverage. Sleek enclosure designs create subtle deployment profiles suitable for any space – both indoors and outdoors.
- Best-in-class hardware - WatchGuard’s fastest access points are built using the latest 802.11ac technology, capable of gigabit speeds. Other models feature 802.11n technology for operation in 2.4GHz and 5GHz frequency bands
- Lower TCO - Integrated wireless controller technology helps realize big cost savings, with no separate controller hardware costs, no per-AP “seat” charges, and no controller software license fees.
|Deployment||Indoor||Indoor/Outdoor (IP66 rated)||Indoor (Plenum)||Indoor (Plenum)|
|Number of Radios||1||1||2||2|
|Frequency of Radio 1||2.4GHz or 5GHz (selectable)||2.4GHz or 5GHz (selectable)||5 GHz||5 GHz|
|Frequency of Radio 2||-||-||2.4 GHz||2.4 GHz|
|Frequency Bands (GHz)*||2.400-2.474GHz, 5.150-5.250GHz, 5.250-5.350GHz, 5.470-5.725GHz, 5.725-5.850GHz|
|Number of Antennas||2 internal, omnidirectional||2 internal, horizontal (120˚)||4 internal, omnidirectional||6 internal, omnidirectional|
|Peak Antenna Gain||3 dBi||6 dBi||4 dBi||4.5 dBi (2.4GHz)
5 dBi (5GHz)
|Tx/Rx Streams||2x2 MIMO with 2 spatial streams||3x3|
|Maximum TX Power*||20 dBm||20 dBm||21 dBm||20 dBm|
|Maximum Data Rate||300 Mbps||300 Mbps||600 Mbps||1.75 Gbps|
|Security Settings||WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK (Mixed), WPA-802.1X (Enterprise) WPA2-802.1X (Enterprise) WPA-802.1X/WPA2-802.1X (Mixed), TKIP, AES, TKIP/AES, Captive Portal, MAC whitelist/blacklist, VLAN Tagging|
|Ethernet||1 x 1 GBe|
|Power over Ethernet (PoE)||802.3af/at|
|Physical Security||Kensington Lock||-||Kensington Lock||Kensington Lock|
|IEEE Standards Supported||802.11a/b/g/n, 802.1i, 802.1q, 802.1X, 802.3af/at, 802.11e||802.11a/b/g/n, 802.1i, 802.1q, 802.1X, 802.3af/ at, 802.11ac, 802.11e, 802.11k, 802.11r|
|Support & Maintenance||1-year or 3-year subscription to Standard Support for hardware warranty with advance hardware replacement, technical support, and software updates - included with purchase|
|Performance Features||802.11e WMM||802.11e WMM||802.11e WMM||802.11e WMM Band Steering Fast roaming (802.11r/k)|
|Operating Temperature||32 to 104 F° (0 to 40° C)||-4 to 131 F° (-20 to 55° C)||32 to 104 F° (0 to 40° C)||32 to 104 F° (0 to 40° C)|
|Operating Relative Humidity||5% to 90% Non-condensing|
|Storage Temperature||-40 to 158° F (-40° to 70° C)||-40 to 158° F (-40° to 70° C)||-40 to 158° F (-40° to 70° C)||-4°F to 140°F (-20°C to 60°C )|
|Non-Operating Relative Humidity||5% to 90% Non-condensing|
|AC Power Adapter (Optional with AP300 and AP 102)|
|Input Voltage||100 - 240V AC|
|Input Current Maximum||400mA|
|PoE Injector (Optional with all Models)|
|Input Voltage||100-240V AC|
|Product Dimensions||6.5”RD x 1.75H (16.5 x 4.4 cm)||6.3” x 6.3” x 1.75” (16.2 x 16.2 x 4.5 cm)||6.5”RD x 1.75H (16.5 x 4.4 cm)||6.29”RD, 1.49 H (16 x 3.8 cm)|
|Shipping Dimensions||7" x 7.25" x 4.5" (17.8 x 18.4 x 11.4 cm)||7.8” x 7.4” x 2” (19.8 x 18.8 x 5.2 cm)||7" x 7.25" x 4.5" (17.8 x 18.4 x 11.4 cm)||7” x 7.25” x 3.5” (17.8 x 18.4 x 8.25 cm)|
|Product Weight||.75 lbs (.34 kg)||.66 lbs (.30 kg)||.75 lbs (.34 kg)||75 lbs (.34 kg)|
|Shipping Weight (includes A/C adapter, mounting kit, etc.)||2 lbs (.91 kg)||1.4 lbs (.65 kg)||2 lbs (.91 kg)||1.34 lbs (.61 kg)|
|Mounting Options||Wall / Ceiling||Wall / Pole||Wall / Ceiling||Wall/Ceiling|
|Wireless||FCC, IC, CE, MIC|
|Safety||NRTL/C, CB, CE|
|Weather Proof (AP 102 Only)||IP66|
|Control of Hazardous Substances||WEEE, RoHS|
*Country-specific restrictions apply
|Suggested Number of Access Points by XTM Model|
|Please note: WatchGuard XTM Firmware must be 11.7.2 or higher.|
|Models:||XTM 2 Series||XTM 3 Series||XTM 5 Series||XTM 8 Series||XTM 800 Series||XTM 1050||XTM 1500 Series||XTM 2050||XTM 2520|
|Number† of Access Points||Up to 5||Up to 15||Up to 35||Up to 70||Up to 100||Up to 100||Up to 100||Up to 100||Up to 100|
**Not available on XTM 21, 22, 23 models
†Number of Access Points is not restricted by license
Download the WatchGuard Access Point Datasheet (PDF).
- Pricing and product availability subject to change without notice.
- Please note: Watchguard Wireless APs need to be managed by a Watchguard Firewall and will not operate as stand-alone access points.
