Strong, Reliable Protection for Small Business Networks

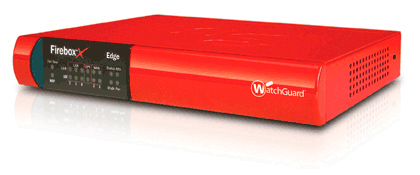

WatchGuard Firebox X20e X Edge e-Series Appliance

Please note, the WatchGuard Firebox X20e has been replaced by the new XTM 22. For all other X20e options and renewals, please click here.

At a Glance:

The Firebox® X Edge XTM solution is a stand-alone firewall and VPN solution for small businesses, remote offices, and telecommuters. It delivers powerful network protection, with integrated IPSec and SSL VPN for secure remote connectivity. Easy-to-use management tools make it an excellent choice for small businesses with limited IT resources.

The Edge is also the ideal endpoint for connecting a secure VPN tunnel back to a WatchGuard® XTM or Firebox X Core or Peak appliance. Available in both wired and wireless models to meet your specific network requirements.

Introducing Fireware XTM - Get to know the new OS from WatchGuard - click here.

  • Security that's easy to deploy and maintain, with flexible networking options
  • Integrated SSL VPN provides simple, anywhere-anytime network access
  • Includes intuitive, centralized management – you don't have to be a security expert to manage your network security efficiently and effectively
  • Powerful wireless security with an 802.11b/g wireless access point and WPA, WPA2, and WEP security options
  • Wireless guest services segment the Internet for customers/guests
  • Support for numerous VoIP options allows call traffic to pass through securely
  • Integrated SSL VPN provides simple, anywhere-anytime network access
  • Easily upgradeable to Fireware® XTM Pro* advanced OS for maximum flexibility, redundancy, and reliability as network demands grow
  • Integrated, upgradeable capabilities mean better value for your dollar
  • Global team of security experts are there when you need them
  • Earth-friendly technology
    * Fireware XTM Pro ships with all X55e and X55e-W models and is available as an upgrade for all X10e, X10e-W, X20e, and X20e-W models.
Compare Edge Models X55e / X55e-W X20e / X20e-W X10e / X10e-W
Firewall Throughput 100 Mbps 100 Mbps 100 Mbps
VPN Throughput 35 Mbps 35 Mbps 35 Mbps
Concurrent Sessions 10,000 8,000 6,000
Interfaces (10/100) 6 6 6
Branch Office VPN Tunnels 25 15 5
Mobile VPN Tunnels (incl./max. concurrent) 5/55 5/25 1/11
SSL VPN* Tunnels (incl./max. concurrent) 55/55 1/25* 1/11*
Users 20-50 10-30 1-15
* Maximum SSL tunnels require Fireware® XTM Pro upgrade.

Business Case:

  • Easy to set up and manage using an intuitive, web-based user interface, so you don’t have to be an IT expert to get up and running quickly
  • Strong security out of the box, with smart default settings and configuration wizards to give you solid protection from day one
  • Secure access to critical network resources for off-site workers using mobile IPSec and SSL VPN. Single sign-on makes for easy user login
  • When using an Edge appliance as an end point on a Firebox X Core or Peak network, centralized configuration management provided by WatchGuard System Manager (WSM) dramatically streamlines administration of your branch offices
  • Secure your inter-office connectivity with easy-to-configure branch office VPN tunnels. With WSM, you can create drag-and-drop VPN tunnels in three simple steps, saving valuable setup and maintenance time
  • Increased capacity and networking/security capabilities as your needs grow is available using a simple software license key – you save money because no new hardware is required

Not sure where to start? Give us a call

Options:



Model Upgrades Firebox® X Model Upgrades - move up the product line without buying new hardware
Edge Pro Edge Pro - advanced appliance software for more complex networks
Mobile User VPN Licenses Mobile VPN Licenses - give more telecommuters or remote employees secure access to corporate resources. For both IPSEC and SSL VPN connections
WAN Failover WAN Failover with serial modem support - maximize network uptime by configuring the appliance to failover from one WAN port to a second; also allows for temporary failover to a dial-up connection
LiveSecurity Service LiveSecurity® Service Renewals & Upgrades- expert technical support, advice and educational resources

Make yours a UTM with our suite of security subscriptions:

UTM Software Suite: Security Subscriptions
Gateway AV/IPS WebBlocker spamBlocker

Product View:

Front View:

WatchGuard X Edge e-Series - Front View

Back View:

WatchGuard X Edge e-Series - Back View

Technical Specifications:

Firebox X Edge e-Series Product Comparison

WatchGuard Firebox® X55eWatchGuard Firebox® X55e Wireless

WatchGuard Firebox® X20eWatchGuard Firebox® X20e Wireless

WatchGuard Firebox® X10eWatchGuard Firebox® X10e Wireless
Firebox® Model Firebox® X55e / x55e-W Firebox® x20e / x20e-W Firebox® X10e / x10e-W
Ideal For Branch offices and single-location businesses requiring an affordable, reliable appliance capable of fully integrated unified threat management and no user limits. For branch offices and single-location businesses with up to 30 users, requiring an affordable, reliable appliance with strong security and genuine ease of use. For branch offices and single-location businesses with up to 15 users, requiring an affordable, reliable appliance, with strong security and genuine ease of use.
Hardware
Model Upgradeable N/A Upgrade from x20e Upgrade from x10e
Interfaces 6: 10/100

1: DB-9 Serial

 6: 10/100

1: DB-9 Serial

6: 10/100

1: DB-9 Serial

DMZs 1 1 1
Security
Application Proxies HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP
Intrusion Prevention (DOS, DDOS, PAD, port scanning, spoofing attacks, address space probes, and more) Yes Yes Yes
Wireless Guest Services N/A N/A N/A
User Authentication with transparent Windows authentication Yes Yes Yes
Performance
Firewall Throughput 100 Mbps 100 Mbps 100 Mbps
VPN Throughput 35 Mbps 35 Mbps 35 Mbps
Concurrent Sessions 10,000 8,000 6,000
VPN Tunnels
Branch Office VPN Tunnels (Max.) 25 15 5
Mobile VPN with SSL Incl/Max 55/55 1/25 with Fireware® XTM Pro upgrade 1/11 with Fireware® XTM Pro upgrade
Mobile VPN with IPSec Client Licenses (Bundled) 5 5 1
Mobile VPN with IPSec Tunnels (Max.) 55 25 11
VPN Authentication Yes Yes Yes
Management
Centralized (Multibox) Management. Optional licenses enable Drag and Drop VPN and one-touch Edge updates. Yes Yes Yes
Networking Features
Dynamic NAT Yes Yes Yes
Static NAT Yes Yes Yes
One to One NAT Yes Yes Yes
VLAN 50 20/50 with Fireware® XTM Pro upgrade 20/50 with Fireware® XTM Pro upgrade
Policy-Based Routing Yes Optional with Fireware® XTM Pro upgrade Optional with Fireware® XTM Pro upgrade
WAN Failover Yes Optional with Fireware® XTM Pro upgrade Optional with Fireware® XTM Pro upgrade
Multi-WAN Loadsharing Yes Optional with Fireware® XTM Pro upgrade Optional with Fireware® XTM Pro upgrade
Multi-WAN Load Balancing Yes Optional with Fireware® XTM Pro upgrade Optional with Fireware® XTM Pro upgrade
Server Load Balancing N/A N/A N/A
Traffic Management/QoS Yes Yes Yes
High Availability (Active/Passive) N/A N/A N/A
Dynamic Routing N/A N/A N/A
VoIP (SIP and H.323) Support Yes Yes Yes
Additional Security Subscriptions
spamBlocker with Virus Outbreak Detection Optional Optional Optional
Gateway AV/IPS with Virus Quarantine Optional Optional Optional
WebBlocker with HTTPS URL filtering Optional Optional Optional
LiveSecurity® Service 90-Day or 1-Year Initial Subscriptions Available 90-Day or 1-Year Initial Subscriptions Available 90-Day or 1-Year Initial Subscriptions Available

Product Details:



Security Features:
  • Stateful Packet Firewall
  • Deep Application Inspection Firewall
  • Proxy Firewall
  • Firewall Application Proxies - HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3
  • Spyware Blocking
  • DoS Attack Prevention
  • Protocol Anomaly Detection
  • Behavioral Analysis
  • Pattern Matching
  • Fragmented Packet Reassembly Protection
  • Malformed Packet Protection
  • Static and Dynamic Blocked Sources Lists
  • Time-based Rules
  • Instant Messaging and P2P Allow/Deny

Virtual Private Networks:

  • VPN
    • Encryption (DES, 3DES, AES)
    • IPSec
    • SHA-1, MD5
    • IKE Pre-Shared Key, Firebox Certificate, 3rd Party Certificates
    • SSL -Thin Client, Web Exchange
  • IPSec Passthrough
  • Dead Peer Detection (RFC 3706)
  • Hardware-based Encryption
  • SSL Support
  • PPTP Support (10 users)

User Authentication:

  • Transparent Active Directory Authentication
  • XAUTH
    • LDAP, Windows® Active Directory
  • RADIUS®
  • Windows NT
  • Windows 2000
  • Windows 2003
  • Single Sign-on

IP Address Assignment:

  • Static
  • PPPoE Client
  • DHCP Server, Client, Relay
 IP Address Assignment:
  • Static
  • PPPoE Client
  • DHCP Server, Client, Relay

Redundancy Features:

  • WAN Failover †
  • WAN Failover to Serial Modem †
  • VPN Failover

WAN Failover:†

  • WAN Model
  • Spill-over
  • Round Robin
  • Failover
  • ECMP
  • Weighted Round Robin

VPN Failover:

Traffic Shaping:

  • Quality of Service
    • 8 Priority Queues
    • DiffServ
    • Modified Strict Queuing

Routing:

  • Static Routes
  • Policy-based Routing †

Networking:

  • Port Independence
  • VLAN
    • Bridging, Tagging, Routed Mode
  • Multi-WAN Load Balancing †
  • VoIP and Video Conferencing Support

Traffic Management and Prioritization:

  • Policy-based Traffic Prioritization
  • VPN Traffic Prioritization
  • Full Marking Support
    • DiffServ
    • IP Services
  • Quality of Service (4 Prioritization Queues)
    • Interactive
    • High
    • Medium
    • Low
  • Load Balancing†
 NAT:
  • Static NAT
  • Dynamic NAT
  • One-to-One NAT
  • IPSec NAT Traversal
  • Policy-based PAT (Port Address Translation)
  • Up to 8 External IP Addresses

Modes of Operation:

  • Integrated 3-Port Switch
  • Routed Mode (Layer 3)

Security Subscriptions:

  • spamBlocker
    • Virus Outbreak Detection
  • Gateway AntiVirus/IPS with anti-spyware
    • Unlimited AV file size scanning
  • WebBlocker
    • With HTTP and HTTPS inspection

Management Software:

  • WatchGuard System Manager (WSM)
  • Command Line Interface
  • Web UI

Logging/Reporting:

  • WSM Security and Activity Reports
  • Web-based Security Subscription Activity Reports
  • Syslog
  • WebTrends® Compatible Reports (available to WSM users)
  • HTML Reports (available to WSM users)
  • Encrypted Log Channel

Wireless Security Capabilities:

  • Wireless Guest Services
  • 802.11b/g
  • 3 Virtual Access Points (VAPs)
  • WPA
  • WPA2
  • WEP

Support & Maintenance:

  • 1-Year Hardware Warranty
  • Initial 90-Day or 1-Year LiveSecurity® Service Subscription

† Available with Fireware XTM Pro advanced operating system upgrade for X10e, X10e-W, X20e, and X20e-W. Fireware XTM Pro comes with X55e and X55e-W models.

Dimensions and Power:

Appliance Dimensions

Wired 7.4" x 6.5" x 1.4" (18.8 x 16.5 x 3.6 cm)
Wireless (antennae extended) 10.6" x 6.5" x 7.3" (26.9 x 16.5 x 18.5 cm)

Packaging Dimensions
Wired 13.3" x 11.9" x 4.4” (33.8 x 30.2 x 11.2 cm)
Wireless 13.3" x 11.9" x 4.4” (33.8 x 30.2 x 11.2 cm)

Appliance Weight
Wired 1.8 lbs (0.8 Kg)
Wireless 1.9 lbs (0.9 Kg)

Total Weight
Wired 3.3 lbs (1.5 Kg)
Wireless 3.8 lbs (1.7 Kg)

WEEE Weight
Wired 2.0 lbs (0.9 Kg)
Wireless 2.1 lbs (1.0 Kg)

AC Power 100-240 VAC Autosensing

Power Consumption
• U.S.: 12 Watts
• Rest of World: 172 Cal/min or 41 BTU/hr

 Environmental:

Operating Temperature
32–113° F (0 – 45° C)

Non-operating Temperature
-40–158° F (-40 – 70° C)

Operating Humidity
10-85%

Non-operating Humidity
5-90% Non-condensing at 131° F (55° C)

Non-operating Random Vibration
7-28 Hz 0.001 to 0.01 G2 per Hz

Operating Mechanical Shock
20 G with 11 Msec duration ½ sine wave

WEEE/RoHS Compliant
Yes

 Wireless:

Antennas - Dual swivel mount antennas, reverse polarity SMA (RP-SMA) connectors
Gain: 5.1 dBi. (2.4 – 2.5 GHz)
Transmitter Power: 29.4 dBm (873 mW) max, configured depending on regulatory domain

Radio Specs - 802.11b
Channel Range: 1-14 (2.412 – 2.484 GHz) configured depending on regulatory domain
Modulation Type: Direct Sequence Spread Spectrum, including (DBPSK, DQPSK, CCK)
Data Rates: 1, 2, 5.5, 11 Mbps per channel

Radio Specs - 802.11g
Channel Range: 1-13 (2.412 – 2.472 GHz) confirmed depending on regulatory domain
Modulation Type: OFDM, including (BPSK, QPSk, 16-QAM, 64-QAM)
Data Rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel

Documentation:

PDF File
WatchGuard X Edge e-Series Datasheet (.PDF)

Blowout Special!

WatchGuard Product
WatchGuard Firebox X Edge e-Series UTM Software Suites - More Details
WatchGuard Firebox® X20e UTM Software Suite - 1 Year
Electronic Delivery of Licenses - Click here for more information		 #WG017454
List Price: $320.00
Our Price: $297.00
WatchGuard Firebox® X20e UTM Software Suite - 2 Year
Electronic Delivery of Licenses - Click here for more information		 #WG017597
List Price: $580.00
Our Price: $539.00
WatchGuard Firebox® X20e UTM Software Suite - 3 Year
Electronic Delivery of Licenses - Click here for more information		 #WG017598
List Price: $770.00
Our Price: $716.00
Model Upgrades
Firebox Edge X20e to Firebox Edge X55e Model Upgrade
Electronic Delivery of Licenses - Click here for more information		 #WG017353
List Price: $490.00
Our Price: $416.00
Edge Pro Upgrades
Firebox Edge X20e Series Edge Pro License
Electronic Delivery of Licenses - Click here for more information		 #WG017460
List Price: $300.00
Our Price: $255.00
LiveSecurity
1 Year LiveSecurity Renewal for Firebox® Edge X20e
Electronic Delivery of Licenses - Click here for more information		 #WG017368
List Price: $130.00
Our Price: $120.00
2 Year LiveSecurity Renewal for Firebox® Edge X20e
Electronic Delivery of Licenses - Click here for more information		 #WG017369
List Price: $240.00
Our Price: $223.00
3 Year LiveSecurity Renewal for Firebox® Edge X20e
Electronic Delivery of Licenses - Click here for more information		 #WG017596
List Price: $310.00
Our Price: $288.00
LiveSecurity Service Reinstatement
Electronic Delivery of Licenses - Click here for more information		 #WG017189
Our Price: $95.00
SpamBlocker Subscription
1 Year SpamBlocker Subscription for Firebox Edge X20e Series
Electronic Delivery of Licenses - Click here for more information		 #WG017412
List Price: $160.00
Our Price: $148.00
Gateway AV/IPS Subscription
1 Year Gateway AV/IPS Subscription for Firebox Edge X20e Series
Electronic Delivery of Licenses - Click here for more information		 #WG017415
List Price: $160.00
Our Price: $148.00
WebBlocker Subscription
1 Year WebBlocker Subscription for Firebox Edge X20e Series
Electronic Delivery of Licenses - Click here for more information		 #WG017360
List Price: $160.00
Our Price: $148.00
Mobile VPN - Learn More
Mobile VPN - 5 User License Key
Electronic Delivery of Licenses - Click here for more information		 #WG3606
List Price: $275.00
Our Price: $255.00
Mobile VPN - 10 User License Key
Electronic Delivery of Licenses - Click here for more information		 #WG3607
List Price: $525.00
Our Price: $488.00
Mobile VPN - 20 User License Key
Electronic Delivery of Licenses - Click here for more information		 #WG3608
List Price: $795.00
Our Price: $755.00
Replacement Power Supply
Power Supply for WatchGuard SOHO and EDGE Family #WG8533
Our Price: $49.00
WatchGuard Training Courses - Learn More
WSM/Fireware Basics and VPN Training 3-Day Course
-Includes comprehensive course materials and certificate of completion. Please specify selected course date in the checkout comments section.		 #WGTRAINING-1
Our Price: $2,385.00
