WatchGuard Firebox X Edge e-Series Appliances
Keep Branch Offices and Stand-Alone Businesses Secure and Connected

At a Glance:

• Security that's easy to deploy and maintain, with flexible networking options
• Integrated SSL VPN provides simple, anywhere-anytime network access
• Includes intuitive, centralized management – you don't have to be a security expert to manage your network security efficiently and effectively
• Powerful wireless security with an 802.11b/g wireless access point and WPA, WPA2, and WEP security options
• Wireless guest services segment the Internet for customers/guests
• Support for numerous VoIP options allows call traffic to pass through securely
• Integrated SSL VPN provides simple, anywhere-anytime network access
• Easily upgradeable to Fireware® XTM Pro* advanced OS for maximum flexibility, redundancy, and reliability as network demands grow
• Integrated, upgradeable capabilities mean better value for your dollar
• Global team of security experts are there when you need them
• Earth-friendly technology

  * Fireware XTM Pro ships with all X55e and X55e-W models and is available as an upgrade for all X10e, X10e-W, X20e, and X20e-W models.

Compare Edge Models	X55e / X55e-W	X20e / X20e-W	X10e / X10e-W
Firewall Throughput	100 Mbps	100 Mbps	100 Mbps
VPN Throughput	35 Mbps	35 Mbps	35 Mbps
Concurrent Sessions	10,000	8,000	6,000
Interfaces (10/100)	6	6	6
Branch Office VPN Tunnels	25	15	5
Mobile VPN Tunnels (incl./max. concurrent)	5/55	5/25	1/11
SSL VPN* Tunnels (incl./max. concurrent)	55/55	1/25*	1/11*
Users	20-50	10-30	1-15

* Maximum SSL tunnels require Fireware® XTM Pro upgrade.

Business Case:

• Easy to set up and manage using an intuitive, web-based user interface, so you don’t have to be an IT expert to get up and running quickly
• Strong security out of the box, with smart default settings and configuration wizards to give you solid protection from day one
• Secure access to critical network resources for off-site workers using mobile IPSec and SSL VPN. Single sign-on makes for easy user login
• When using an Edge appliance as an end point on a Firebox X Core or Peak network, centralized configuration management provided by WatchGuard System Manager (WSM) dramatically streamlines administration of your branch offices
• Secure your inter-office connectivity with easy-to-configure branch office VPN tunnels. With WSM, you can create drag-and-drop VPN tunnels in three simple steps, saving valuable setup and maintenance time
• Increased capacity and networking/security capabilities as your needs grow is available using a simple software license key – you save money because no new hardware is required

Not sure where to start? Give us a call

Options:

Options for the Firebox X Edge e-Series:

Firebox® X Model Upgrades - move up the product line without buying new hardware

Fireware® XTM Pro - advanced appliance software for more complex networks

Mobile VPN Licenses - give more telecommuters or remote employees secure access to corporate resources. For both IPSEC and SSL VPN connections

LiveSecurity® Service Renewals & Upgrades - expert technical support, advice and educational resources

Make yours a UTM with our suite of security subscriptions:

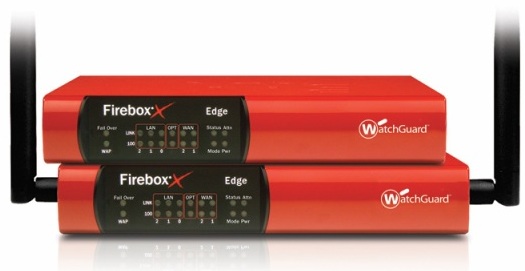

Product View:

Front View:

Back View:

Technical Specifications:

Firebox X Edge e-Series Product Comparison
Firebox® Model	Firebox® X55e / x55e-W	Firebox® x20e / x20e-W	Firebox® X10e / x10e-W
Ideal For	Branch offices and single-location businesses requiring an affordable, reliable appliance capable of fully integrated unified threat management and no user limits.	For branch offices and single-location businesses with up to 30 users, requiring an affordable, reliable appliance with strong security and genuine ease of use.	For branch offices and single-location businesses with up to 15 users, requiring an affordable, reliable appliance, with strong security and genuine ease of use.
Hardware
Model Upgradeable	N/A
Interfaces	6: 10/100 1: DB-9 Serial	6: 10/100 1: DB-9 Serial	6: 10/100 1: DB-9 Serial
DMZs	1	1	1
Security
Application Proxies	HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP	HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP	HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3, SIP, H.323, TFTP
Intrusion Prevention (DOS, DDOS, PAD, port scanning, spoofing attacks, address space probes, and more)
Wireless Guest Services	N/A	N/A	N/A
User Authentication with transparent Windows authentication
Performance
Firewall Throughput	100 Mbps	100 Mbps	100 Mbps
VPN Throughput	35 Mbps	35 Mbps	35 Mbps
Concurrent Sessions	10,000	8,000	6,000
VPN Tunnels
Branch Office VPN Tunnels (Max.)	25	15	5
Mobile VPN with SSL Incl/Max	55/55	1/25 with Fireware® XTM Pro upgrade	1/11 with Fireware® XTM Pro upgrade
Mobile VPN with IPSec Client Licenses (Bundled)	5	5	1
Mobile VPN with IPSec Tunnels (Max.)	55	25	11
VPN Authentication
Management
Centralized (Multibox) Management. Optional licenses enable Drag and Drop VPN and one-touch Edge updates.
Networking Features
Dynamic NAT
Static NAT
One to One NAT
VLAN	50	20/50 with Fireware® XTM Pro upgrade	20/50 with Fireware® XTM Pro upgrade
Policy-Based Routing		Optional with Fireware® XTM Pro upgrade	Optional with Fireware® XTM Pro upgrade
WAN Failover		Optional with Fireware® XTM Pro upgrade	Optional with Fireware® XTM Pro upgrade
Multi-WAN Loadsharing		Optional with Fireware® XTM Pro upgrade	Optional with Fireware® XTM Pro upgrade
Multi-WAN Load Balancing		Optional with Fireware® XTM Pro upgrade	Optional with Fireware® XTM Pro upgrade
Server Load Balancing	N/A	N/A	N/A
Traffic Management/QoS
High Availability (Active/Passive)	N/A	N/A	N/A
Dynamic Routing	N/A	N/A	N/A
VoIP (SIP and H.323) Support
Additional Security Subscriptions
spamBlocker with Virus Outbreak Detection	Optional	Optional	Optional
Gateway AV/IPS with Virus Quarantine	Optional	Optional	Optional
WebBlocker with HTTPS URL filtering	Optional	Optional	Optional
LiveSecurity® Service	90-Day or 1-Year Initial Subscriptions Available	90-Day or 1-Year Initial Subscriptions Available	90-Day or 1-Year Initial Subscriptions Available

Documentation:

WatchGuard X Edge e-Series Datasheet (.PDF)
