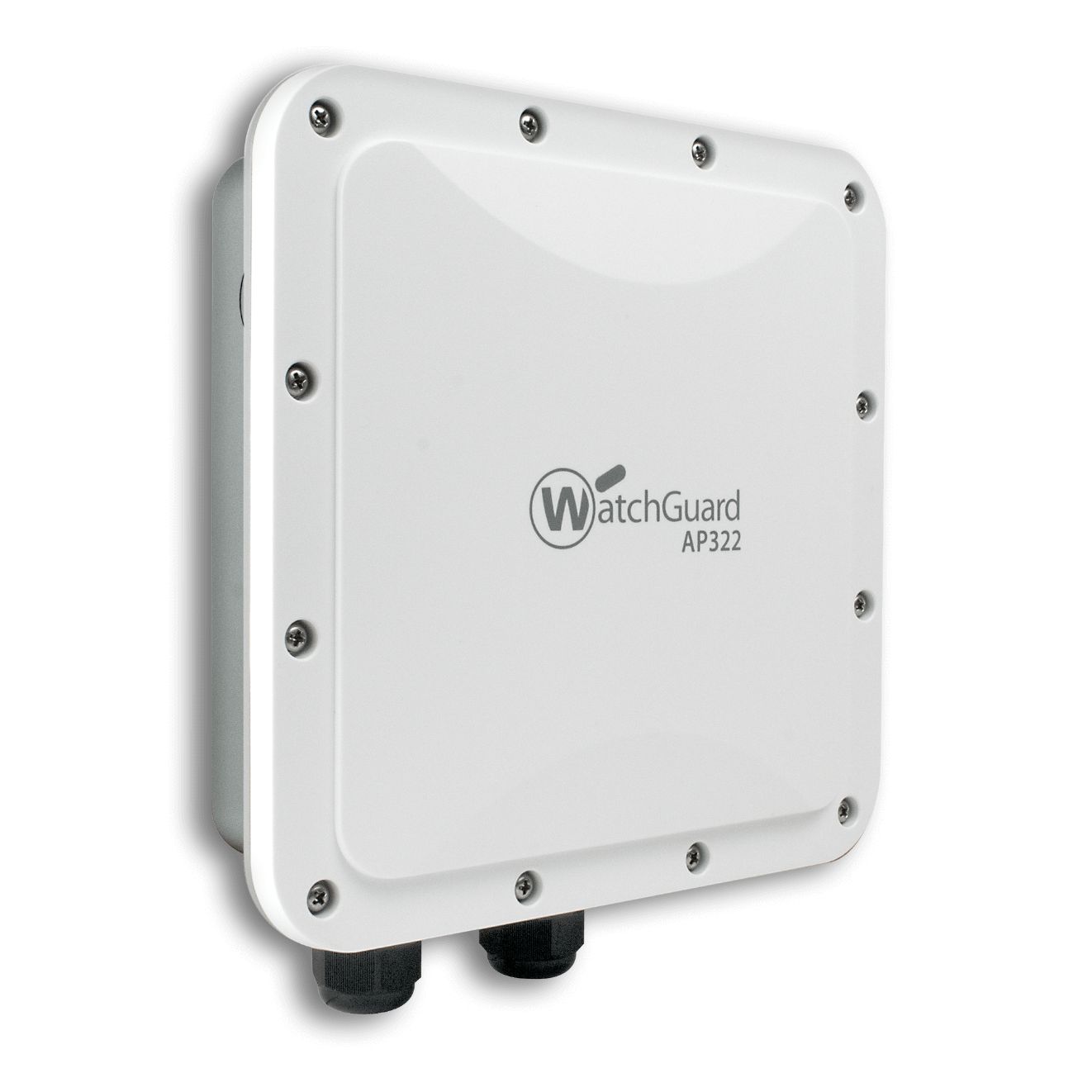

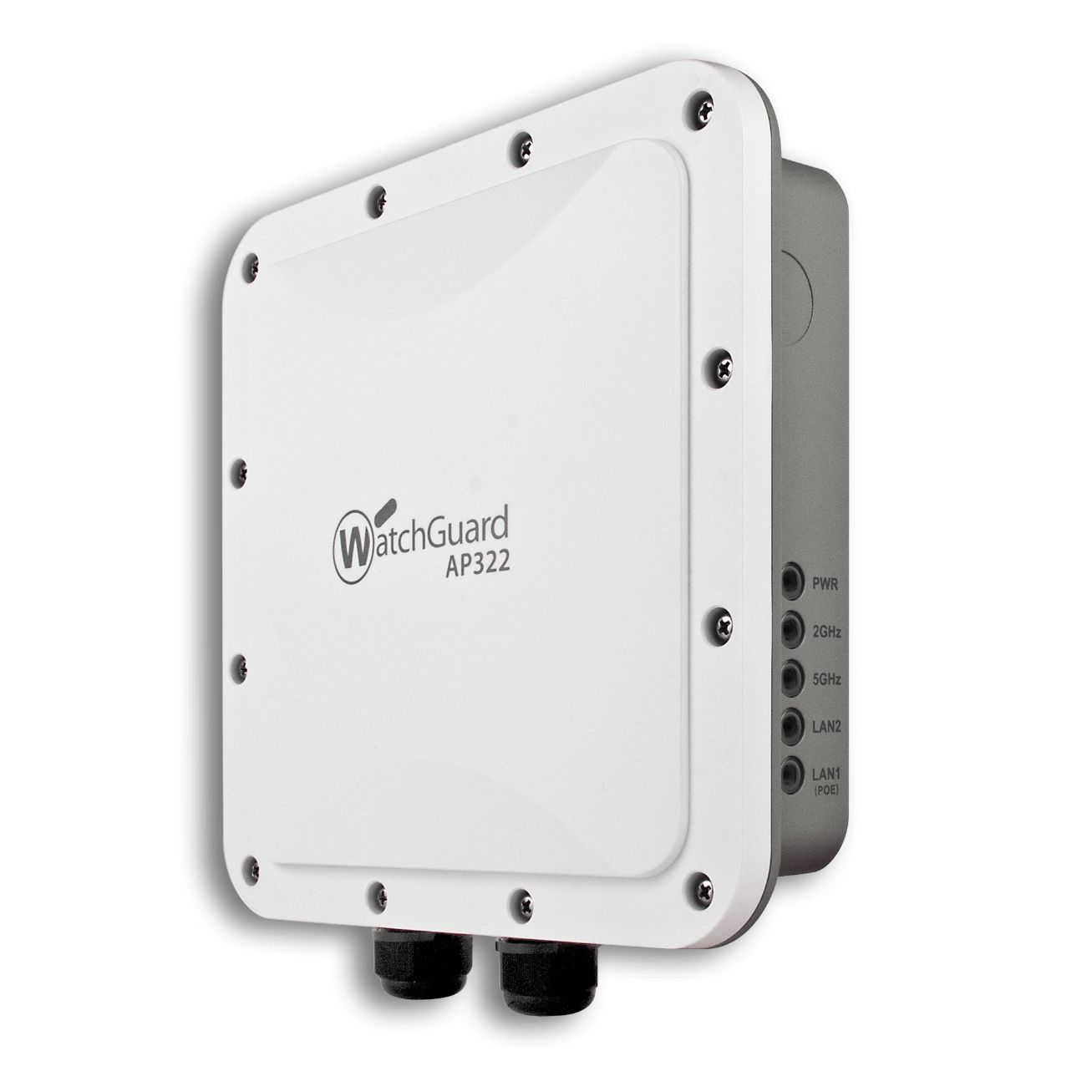

WatchGuard AP322 Outdoor Access Point
IP67-rated enclosure, 3x3 MIMO, 802.11ac wave 1 support 6 integrated antennas, 2 GbE ports, PoE+

WatchGuard AP322

WatchGuard Wireless
WatchGuard AP322 and Basic Wi-Fi
WatchGuard AP322 and 1-yr Basic Wi-Fi
#WGA3W701
List Price: $1,520.00
Our Price: $1,170.00
WatchGuard AP322 and 3-yr Basic Wi-Fi
#WGA3W703
List Price: $1,615.00
Our Price: $1,243.00

More pricing below, click here!

Overview:

WatchGuard’s AP322 brings secure, cloud-managed Wi-Fi to the outdoors. Its rugged, IP67-rated enclosure protects the wireless access point from the wind, rain, and cold weather, while six integrated omnidirectional antennas operate with three spatial streams per radio (3x3 MIMO) to deliver broad, fast, and reliable Wi-Fi coverage. The AP322 is ideal for stadiums and sports fields, schools/universities, malls, parks, hotel pool areas and open air cafes, shipping docks, warehouses, and other harsh environments or outdoor locations.

“We’ve found that the dashboard within the WatchGuard Wi-Fi Cloud product has made it much easier for our limited IT staff to deploy new access points, to understand the functionality of the existing access points, and to understand the true needs of our guests.”

~ Hunter Hughes, Director of IT, Museum of Flight

Flexible Management Options

You can manage AP322 access points with either a Firebox®, via the Gateway Wireless Controller with lightweight feature set, or with WatchGuard’s Wi-Fi Cloud. And with the Wi-Fi Cloud you get an expanded set of features including strong WIPS security, marketing tools, and location-based analytics for optimal business insights.

Performance Without Compromise

Incorporating the latest 802.11ac standards, you’ll have speeds of up to 1.3 Gbps over the air, without sacrificing security. When managed by the Wi-Fi Cloud, WatchGuard APs come standard with RF optimization, spectrum monitoring, and trouble-shooting built in.

Uniquely Effective Approach To Security

Using patented Marker Packet technology, WatchGuard’s cloud-managed WIPS (Wireless Intrusion Prevention System) defends your airspace from unauthorized devices, man- in-the-middle and denial-of-service attacks, rogue APs and more. As a dedicated WIPS sensor, the AP322 can be added to any existing Wi-Fi network for a powerful layer of patented security features simply unavailable in most AP devices.

Advantages Of Cloud-based Management

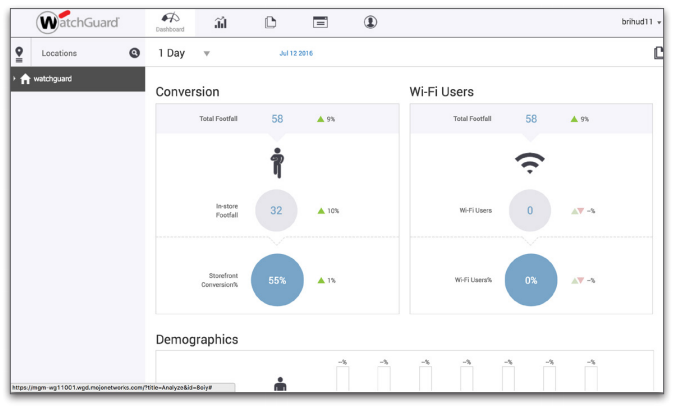

WatchGuard’s secure cloud-managed APs deliver the most comprehensive set of features for the price – including marketing tools for customizable user engagement and location- based analytics for enhanced business insights. With the WatchGuard Wi-Fi Cloud, IT pros can enjoy an entirely controller-less Wi-Fi management experience including setup, configuration, monitoring, troubleshooting, and improving corporate and guest Wi-Fi access, without worrying about the limitations of legacy controller infrastructure. Wi-Fi Cloud environments easily scale from one to an unlimited number of APs across multiple locations. APs can be grouped in many ways including location, building, floor, and customer to maintain consistent policies.

Features & Benefits

  • Support for up to 8 individual SSIDs per radio allows for maximum flexibility in network design.
  • The IP67 sealed enclosure protects APs in harsh, wet outdoor environments so they can be mounted with direct exposure to the elements – no overhang or shelter required.
  • AP322 devices can be converted to a ded- icated security sensor with a single click for maximum wireless protection.
  • Manage with Wi-Fi Cloud for expanded features including strong WIPS security, marketing tools and location-based ana- lytics for enhanced business insights.
  • Patented Marker Packet technology is used to accurately detect authorized, unauthorized, and external access points on any network with the fewest false positives in the industry.
  • Supports self-healing and bridge-mode wireless meshing for optimal installation scenarios.

Specifications:

PHYSICAL SPECIFICATIONS
WatchGuard AP322 Outdoor Access Poin Property Specification
Physical Dimensions 8.26” x 8.26” x 2.6378” (210 mm x 210 mm x 67 mm)
Weight 3.22 lb. (1.46 kg)
Operating Temperature -20oC to 55oC (-4oF to 131oF)
Storage Temperature -40oC to 70oC (-40oF to 158oF)
Humidity 5% to 95% non-condensing
Max power consumption 17.4W (DC plug) | 19W (802.3at)

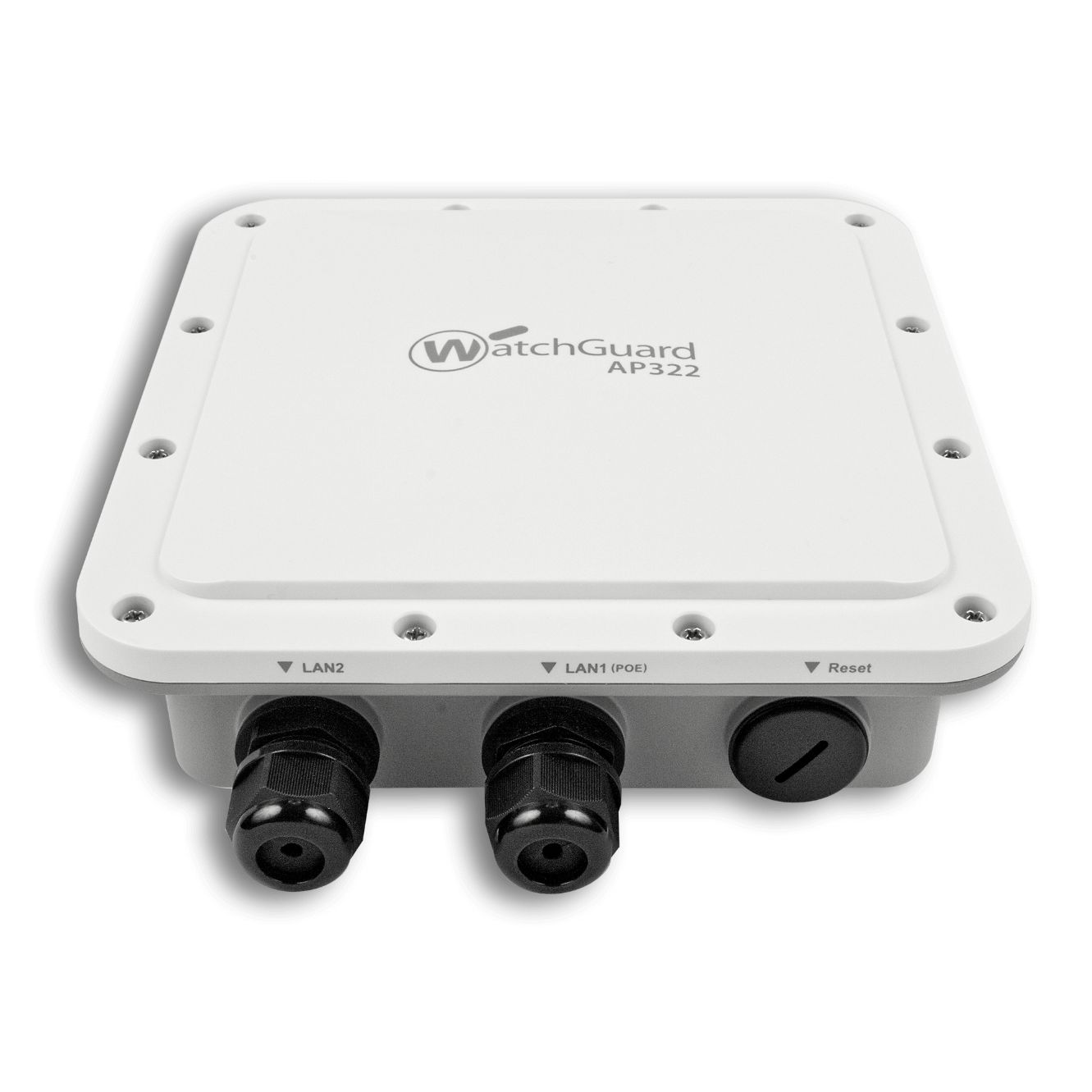

Bottom View WatchGuard AP322 Outdoor Access Poin Side View WatchGuard AP322 Outdoor Access Poin Port Description Connector Type Speed/Protocol
LAN1 Gigabit Ethernet port that enables the device to connect to the wired LAN and communicate with the WatchGuard Cloud or Server. This port is also used to power the device using the 802.3at Power over Ethernet Plus (PoE+) standard. IP67 rated weatherproof RJ-45 10/100/1000 Mbps Gigabit Ethernet 802.3at PoE+
LAN2 Gigabit Ethernet port that can be used for wired extension of an SSID IP67 rated weatherproof RJ-45 10/100/1000 Mbps Gigabit Ethernet
Reset Reset to factory default settings Push button Hold down an power cycle the device to reset

WI-FI SPECIFICATIONS – Frequency, Modulation, and Data Rates
IEEE 802.11b/g/n
Frequency Band Scanning Transmission
All regions USA & Canada (FCC/IC) Europe (ETSI)
2400 ~ 2483.5 MHz 2400 ~ 2473.5 MHz 2400 ~ 2483.5 MHz
Modulation Type DSSS, OFDM
Data Rates Up to 450 Mbps (MCS 0-23) with automatic rate adaptation
Antenna Integrated modular high efficiency PIFA omnidirectional antenna with peak gain up to 7.5dBi
IEEE 802.11a/n/ac
Frequency Band Scanning Transmission
  All regions USA & Canada (FCC/IC) Europe (ETSI)
  5.15 ~ 5.25 GHz 5.25 ~ 5.35 GHz 5.47~ 5.725 GHz 5.725~ 5.825 GHz 5.15 ~ 5.25 GHz 5.25 ~ 5.35 GHz 5.725~ 5.825GHz 5.15 ~ 5.25 GHz 5.25 ~ 5.35 GHz 5.47~ 5.725 GHz
Dynamic Frequency Selection DFS and DFS2
Modulation Type OFDM
Data Rates Up to 1.3 Gbps (MCS 0-23) with automatic rate adaptation
Antenna Integrated modular high efficiency PIFA omnidirectional antenna with peak gain up to 10.2dBi

MAXIMUM TRANSMIT POWER – FOR 2.4TGHZ
Transmitter Target Power(Bm)
802.11b
1 ~ 2 Mbps 24
5.5 ~ 11 Mbps 24
802.11g
6 ~ 24 Mbps 24
36 Mbps 23
48 Mbps 22
54 Mbps 22
802.11n HT20
MCS 0,8,16 24
MCS 1,2,3,4,5,9,10,11,12,13,17,18,19,20,21 23
MCS 6,7,14,15,22,23 22
802.11n HT40
MCS 0,1,2,3,4,5,8,9,10,11,12,13,16,17,18,19,20,21 23
MCS 6,7,14,15,22 22
MCS 23 21

COUNTRY-WISE MAX TRANSMIT POWERS (DBM)
Countries 2.4GHz 5Ghz
Australia 20 23
Canada 30 23
India 20 20
Israel 20 20
Japan 20 20
UAE 20 17
USA 20 23
Note: The actual transmit power will be the lowest of:
  • Value specified in the Device Template
  • Maximum value allowed in the regulatory domain
  • Maximum power supported by the radio
For 5GHz
Transmitter Target Power(dBm)
802.11a
6 ~ 24 Mbps 24
36 Mbps 23
48 Mbps 22
54 Mbps 22
802.11n HT20
MCS 0,8,16 24
MCS 1,2,9,10,17,18 23
MCS 3,4,5,11,12,13,19,20,21 22
MCS 6,14,22 21
MCS 7,15,23 20
802.11n HT40
MCS 0,8,16 23
MCS 1,2,9,10,17,18 22
MCS 3,4,5,6,11,12,13,14,19, 20,21 21
MCS 7,15,22 20
MCS 23 19
802.11ac VHT20/VHT40
MCS 0,1,2 23
MCS 3,4,5 22
MCS 6 21
MCS 7 20
MCS 8 18
MCS 9 17
802.11ac VHT80
MCS 0,1,2 22
MCS 3,4,5 21
MCS 6 20
MCS 7 19
MCS 8 17
MCS 9 16

Receive Sensitivity – For 5GHz
MCS Index Receive Sensitivity
802.11a (legacy)
6Mbps -91
36Mbps -78
48Mbps -75
54Mbps -73
802.11n HT20 (legacy)
MCS 0,8 -91
MCS 1,9 -88
MCS 2,10 -85
MCS 3,11 -81
MCS 4,12 -77
MCS 5,13 -74
MCS 6,14 -72
MCS 7,15 -71
802.11n HT40
MCS 0,8 -87
MCS 1,9 -85
MCS 2 ,10 -82
MCS 3,11 -78
MCS 4,12 -74
MCS 5,13 -70
MCS 6,14 -69
MCS 7,15 -68
802.11ac 256QAM VHT80
MCS 0 -84
MCS 1 -82
MCS 2 -79
MCS 3 -75
MCS 4 -71
MCS 5 -67
MCS 6 -66
MCS 7 -65
MCS 8 -60
MCS 9 -58

For 2.4GHz
MCS Index Receive Sensitivity
802.11b
1Mbps -94
11Mbps -86
802.11g
6Mbps -90
24Mbps -81
36Mbps -78
48Mbps -74
54Mbps -73
802.11n HT20
MCS 0,8 -90
MCS 1,9 -87
MCS 2,10 -84
MCS 3,11 -80
MCS 4,12 -77
MCS 5,13 -73
MCS 6,14 -71
MCS 7,15 -69
802.11n HT40
MCS 0,8 -86
MCS 1,9 -84
MCS 2,10 -81
MCS 3,11 -77
MCS 4,12 -74
MCS 5,13 -70
MCS 6,14 -68

Wi-fi Solution:


WatchGuard Wi-Fi Solution Total Wi-Fi Secure Wi-Fi Basic Wi-Fi
Central management via hosted Wi-Fi Cloud

Patented Wireless Intrusion Prevention System (WIPS) for stopping Wi-Fl attacks that steal passwords, credit cards, etc.



Highly scalable management via templates and profiles


Friendly Wi-Fi compliant URL filtering WebBlocker required
Customizable dashboards
Reporting engine with pre-bullt reports including PCI, HIPAA, DoD, wireless vulnerability assessment
Floor map support with visualization of WI-Fl and WIPS signal coverage
Captive portals (splash pages) with pre-built templates
Splash page authentication: click-through, social, guest book, email, SMS, web form, poll, video
Landing pages and templates
Social WI-Fl authentication (Facebook, Twitter, Unkedin,Googlet Instagram, Foursquare)
Graphical and text templates for SMS + URL Interception
Location based analytics: footfall, dwell time, conversion, etc.
Social analytics: age, gender, birthday, language, etc
Customizable analytic reporting
Floor map support for analytic
Central management via Firebox appliance
Standard 24x7 Support

Comparision Guide:


Designed from the ground up for businesses of all types and sizes, access points from WatchGuard deliver the best combination of security, performance, and manageability on the market. When managed by the WatchGuard Wi-Fi Cloud, these access points deliver fast, reliable wireless access while providing our customers with industry-leading wireless security, powerful guest engagement, and business-driven analytic tools.

Choose a cloud-ready access point that meets your business needs – whether indoors or outdoors – without sacrificing security.

  AP120 AP320 AP322
Model Name, Description Built for networks with heavy smartphone and tablet access such as guest or public Wi-Fi environments, or smaller-footprint locations that support limited devices. If you have a branch office, store or a small classroom, this is a solution for you. Perfect for busy environments with diverse client ecosystem and Wi-Fi requirements. This high-horsepower access point can support critical applications like voice, video, and cloud with ease. If you need Wi-Fi for an office, classroom or a meeting space, this is a solution for you. Features a rugged IP67 compliant exterior and delivering broad, fast, and reliable Wi-Fi coverage, this access point brings Wi-Fi to stadiums, schools, outdoor cafes, shipping docks, warehouses, and more. If you need Wi-Fi for the outdoors, this is a solution for you.
Deployment Indoor Indoor Outdoor
MIMO 2x2 3x3 3x3
Number of Antennas 4 6 6
Max Data Rate Up to 866 Mbps for 11ac Up to 300 Mbps for 11n Up to 1.3 Gbps for 11ac Up to 450 Mbps for 11n Up to 1.3 Gbps for 11ac Up to 450 Mbps for 11n
Ethernet Ports 1xGbE 2xGbE (supports wired extension of a SSID) 2xGbE (supports wired extension of a SSID)
Product Dimensions 8.26” x 8.26” x 2.6378” (210 x 210 x 67 mm) 6.96” x 6.10” x 1.65” (177 x 155 x 42 mm) 8.26” x 8.26” x 2.6378” (210 x 210 x 67 mm)

You can manage all of WatchGuard’s access points with either a Firebox® via the Gateway Wireless Controller or with the Wi-Fi Cloud. And, with Wi-Fi Cloud you get an expanded set of features including strong WIPS security, social network enabled captive portals, marketing tools, and location-based analytics for optimal business insights.

Internal Antenna Radiation Patterns:

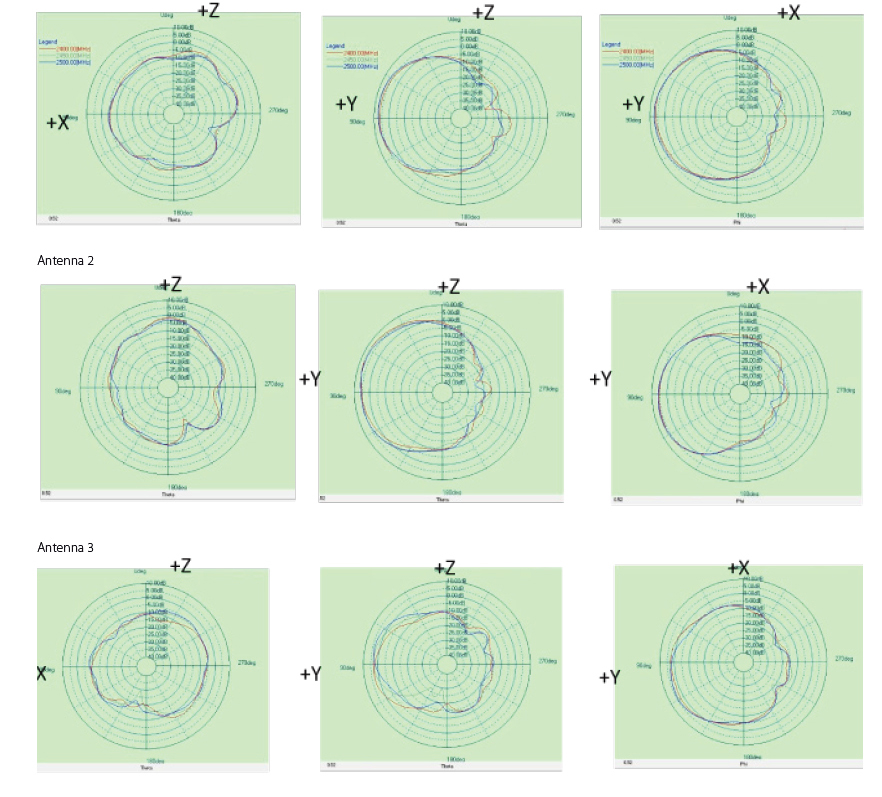

2.4 GHz

2.4 GHz Internal Antenna Radiation Patterns

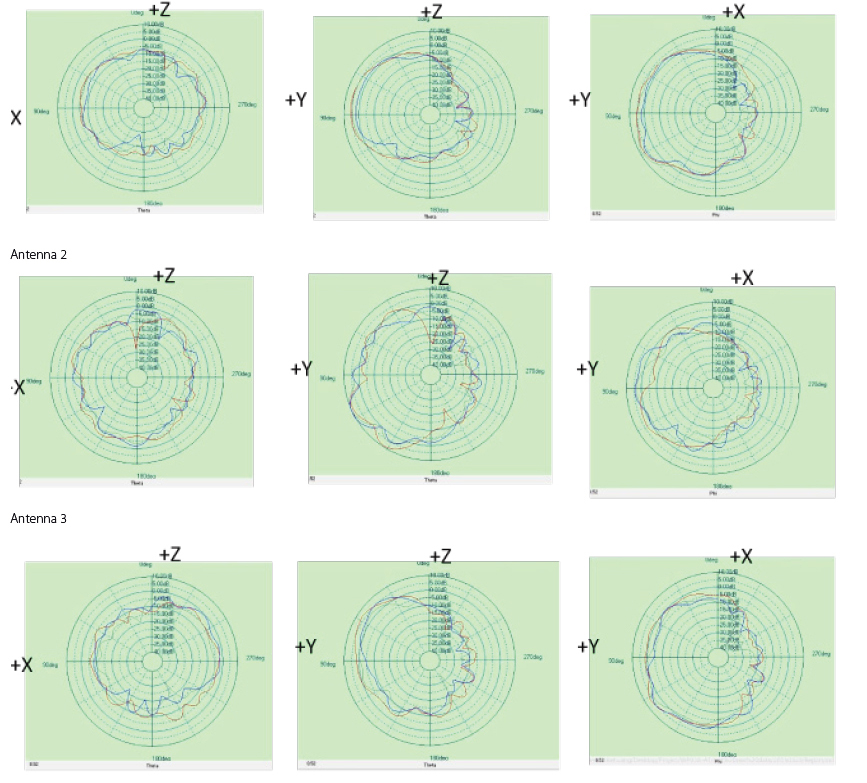

5 GHz

5 GHz Internal Antenna Radiation Patterns
