WatchGuard AP200
Wireless Indoor (Plenum) Access Point

WatchGuard AP200 Wireless Access Point

Please note: Watchguard Wireless APs need to be managed by a Watchguard Firewall and will not operate as stand-alone access points.

The AP200 is no longer available and has been replaced by the new AP300. Support and subscription renewals are still available below.

Live Demo Box, Click here!

WatchGuard Access Point Overview:

The mass adoption of smart wireless devices like tablets, smartphones and notebooks is driving the BYOD (bring your own device) explosion, putting ever increasing demands on wireless networks. This pressure, coupled with the exponential growth of applications and cloud services available to end-users, means it is now more important than ever to have control of your entire network – both wired and wireless – with best-in-class security, integrated security policies, and increased visibility.

Extend best-in-class UTM security to the WLAN

Protecting against today’s sophisticated blended threats requires multiple security capabilities, and these threats don’t discriminate between a wired or wireless network path to their targets. WatchGuard’s wireless access points meet this challenge by extending best-in-class UTM security – including application control, intrusion prevention, URL and web content filtering, virus and spam blocking and more – from your WatchGuard firewall to the WLAN. With these appliances, businesses can harness the power of mobile devices and wireless networking – both indoors and outdoors – without putting network assets at risk.

Integrate wired and wireless security policies

WatchGuard’s integrated wireless controller technology combined with WatchGuard’s AP100, AP102, AP200, and AP300 wireless access points allows users to easily apply security policies to wired and WLAN resources simultaneously , which is critical to enforcing security standards across the entire network infrastructure. And updating integrated policies couldn’t be simpler – creating huge IT time and cost savings.

Unified device management

Unified device management tools offer a “single pane of glass” view into network security activities and allow users to configure and manage their WatchGuard wireless access points and WatchGuard firewall from one place – reducing both setup time and maintenance costs.

Key Features:

  • Ease of management - With unified management tools, administrators can easily manage both their AP devices and firewall appliances from a single console
  • Strong security - Features like MAC filtering, client reporting, Captive Portal technology, 802.1X authentication, and PCI compliant scan and reporting ensure a strong WLAN security stance.
  • Great coverage, low profile - Powerful radios and custom internal antennas provide broad, reliable WLAN coverage. Sleek enclosure designs create subtle deployment profiles suitable for any space – both indoors and outdoors.
  • Best-in-class hardware - WatchGuard’s fastest access points are built using the latest 802.11ac technology, capable of gigabit speeds. Other models feature 802.11n technology for operation in 2.4GHz and 5GHz frequency bands
  • Lower TCO - Integrated wireless controller technology helps realize big cost savings, with no separate controller hardware costs, no per-AP “seat” charges, and no controller software license fees.


Access Points AP100 AP102 AP200 AP300
Hardware Details
Deployment Indoor Indoor/Outdoor (IP66 rated) Indoor (Plenum) Indoor (Plenum)
Number of Radios 1 1 2 2
Frequency of Radio 1 2.4GHz or 5GHz (selectable) 2.4GHz or 5GHz (selectable) 5 GHz 5 GHz
Frequency of Radio 2 - - 2.4 GHz 2.4 GHz
Frequency Bands (GHz)* 2.400-2.474GHz, 5.150-5.250GHz, 5.250-5.350GHz, 5.470-5.725GHz, 5.725-5.850GHz
Number of Antennas 2 internal, omnidirectional 2 internal, horizontal (120˚) 4 internal, omnidirectional 6 internal, omnidirectional
Peak Antenna Gain 3 dBi 6 dBi 4 dBi 4.5 dBi (2.4GHz)
5 dBi (5GHz)
Tx/Rx Streams 2x2 MIMO with 2 spatial streams 3x3
Maximum TX Power* 20 dBm 20 dBm 21 dBm 20 dBm
Maximum Data Rate 300 Mbps 300 Mbps 600 Mbps 1.75 Gbps
SSID 8 8 16 16
Security Settings WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK (Mixed), WPA-802.1X (Enterprise) WPA2-802.1X (Enterprise) WPA-802.1X/WPA2-802.1X (Mixed), TKIP, AES, TKIP/AES, Captive Portal, MAC whitelist/blacklist, VLAN Tagging
Ethernet 1 x 1 GBe
Power over Ethernet (PoE) 802.3af/at
A/C Adapter Included Optional Included Optional
PoE Injector Optional Optional Optional Optional
Physical Security Kensington Lock - Kensington Lock Kensington Lock
IEEE Standards Supported 802.11a/b/g/n, 802.1i, 802.1q, 802.1X, 802.3af/at, 802.11e 802.11a/b/g/n, 802.1i, 802.1q, 802.1X, 802.3af/ at, 802.11ac, 802.11e, 802.11k, 802.11r
Support & Maintenance 1-year or 3-year subscription to Standard Support for hardware warranty with advance hardware replacement, technical support, and software updates - included with purchase
Performance Features 802.11e WMM 802.11e WMM 802.11e WMM 802.11e WMM Band Steering Fast roaming (802.11r/k)
Environmental Information
Operating Temperature 32 to 104 F° (0 to 40° C) -4 to 131 F° (-20 to 55° C) 32 to 104 F° (0 to 40° C) 32 to 104 F° (0 to 40° C)
Operating Relative Humidity 5% to 90% Non-condensing
Storage Temperature -40 to 158° F (-40° to 70° C) -40 to 158° F (-40° to 70° C) -40 to 158° F (-40° to 70° C) -4°F to 140°F (-20°C to 60°C )
Non-Operating Relative Humidity 5% to 90% Non-condensing
AC Power Adapter (Optional with AP300 and AP 102)
Input Voltage 100 - 240V AC
Frequency 50/60Hz
Input Current Maximum 400mA
Output Voltage 12V
Output Current 1250mA
PoE Injector (Optional with all Models)
IEEE Standard 802.3af
Input Voltage 100-240V AC
Output Voltage 56V
Output Power 15.4W
Product Dimensions 6.5”RD x 1.75H (16.5 x 4.4 cm) 6.3” x 6.3” x 1.75” (16.2 x 16.2 x 4.5 cm) 6.5”RD x 1.75H (16.5 x 4.4 cm) 6.29”RD, 1.49 H (16 x 3.8 cm)
Shipping Dimensions 7" x 7.25" x 4.5" (17.8 x 18.4 x 11.4 cm) 7.8” x 7.4” x 2” (19.8 x 18.8 x 5.2 cm) 7" x 7.25" x 4.5" (17.8 x 18.4 x 11.4 cm) 7” x 7.25” x 3.5” (17.8 x 18.4 x 8.25 cm)
Product Weight .75 lbs (.34 kg) .66 lbs (.30 kg) .75 lbs (.34 kg) 75 lbs (.34 kg)
Shipping Weight (includes A/C adapter, mounting kit, etc.) 2 lbs (.91 kg) 1.4 lbs (.65 kg) 2 lbs (.91 kg) 1.34 lbs (.61 kg)
Mounting Options Wall / Ceiling Wall / Pole Wall / Ceiling Wall/Ceiling
Wireless FCC, IC, CE, MIC
Safety NRTL/C, CB, CE
Weather Proof (AP 102 Only) IP66
Control of Hazardous Substances WEEE, RoHS
*Country-specific restrictions apply


Suggested Number of Access Points by XTM Model
Please note: WatchGuard XTM Firmware must be 11.7.2 or higher.
Models: XTM 2 Series XTM 3 Series XTM 5 Series XTM 8 Series XTM 800 Series XTM 1050 XTM 1500 Series XTM 2050 XTM 2520
Number† of Access Points Up to 5 Up to 15 Up to 35 Up to 70 Up to 100 Up to 100 Up to 100 Up to 100 Up to 100
**Not available on XTM 21, 22, 23 models
†Number of Access Points is not restricted by license

Product View:

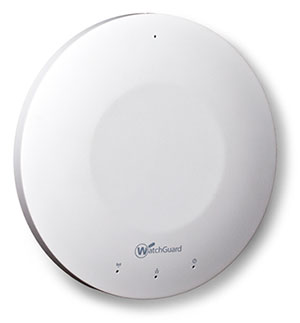

WatchGuard Access Point front view

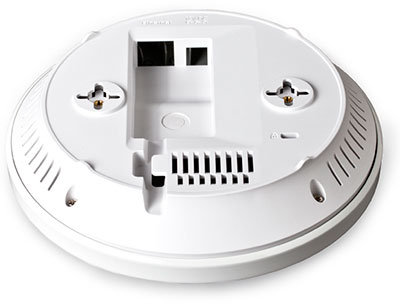

Watchguard Access Point - Back View

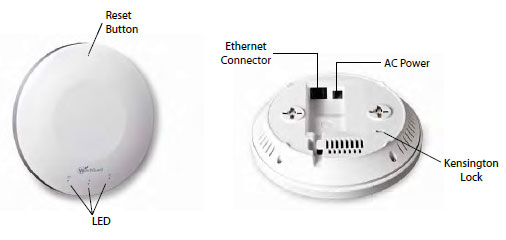

WatchGuard Access Point Diagram


Download the WatchGuard Access Point Datasheet (PDF).

Pricing Notes:

WatchGuard Wireless
WatchGuard AP200 Series LiveSecurity Bundles
AP200 1-Year LiveSecurity Renewal
Our Price: $95.00
AP200 3-Year LiveSecurity Renewal
Our Price: $225.00
